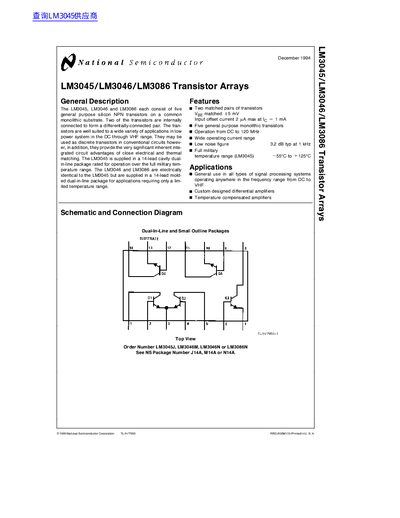

National Semiconductor LM3045/LM3046/LM3086 Transistor Arrays Datasheet
The document describes the LM3045, LM3046, and LM3086, which consist of five general-purpose silicon NPN transistors on a common monolithic substrate. Two of these transistors are internally connected to form a differentially-connected pair. These devices are well-suited for low-power systems operating in the DC through VHF range.
Read onlineNational Semiconductor LM304 specifications
| Number of Transistors | Five general purpose monolithic transistors |
|---|---|
| Operating Frequency Range | DC to 120 MHz |
| Input Offset Current (LM3045) | 2 pA max at Io = 1mA |
| Low Frequency Noise Figure | 3.2 dB typ at 1 kHz |
Source: National Semiconductor LM3045/LM3046/LM3086 Transistor Arrays Datasheet
All National Semiconductor LM304 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for the LM3046 and LM3086?
The LM3046 and LM3086 operate from -40°C to +85°C.
From: National Semiconductor LM3045/LM3046/LM3086 Transistor Arrays Datasheet
Are the transistors in these arrays matched?
Yes, they feature two matched pairs of transistors with Vee matched within +5 mV.
From: National Semiconductor LM3045/LM3046/LM3086 Transistor Arrays Datasheet
What is the operating temperature range for the LM104?
The LM104 is specified for operation over the -55°C to +125°C military temperature range.
From: National Semiconductor LM104/LM204/LM304 Negative Regulator Datasheet
Can the output voltage be programmed?
Yes, the regulators can be programmed by a single external resistor to supply any voltage from 40V down to zero.
From: National Semiconductor LM104/LM204/LM304 Negative Regulator Datasheet
