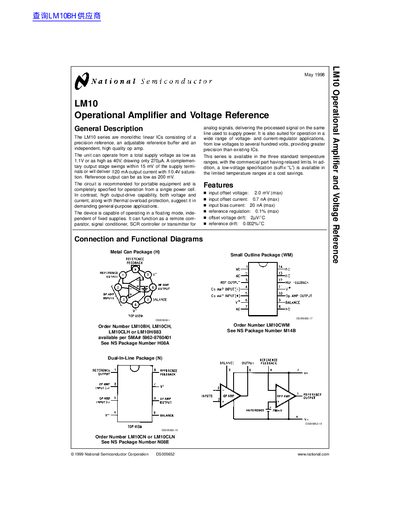

National Semiconductor LM10 Operational Amplifier and Voltage Reference Datasheet
The document describes the LM10 series of monolithic linear integrated circuits. These devices consist of a precision voltage reference, an adjustable reference buffer, and an independent high-quality operational amplifier in a single unit. The circuit is designed for portable equipment with low power consumption (270 µA) and can operate from supply voltages as low as 1.1V up to 40V.
Read onlineNational Semiconductor LM10 specifications
| Input offset voltage (max) | 2.0 mV |
|---|---|
| Supply current | 270 µA |
| Total supply voltage range | 1.1V to 40V |
| Reference regulation (max) | 0.1% |
Source: National Semiconductor LM10 Operational Amplifier and Voltage Reference Datasheet
All National Semiconductor LM10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- National Semiconductor LM10 Operational Amplifier and Voltage Reference Datasheet 21 p
- National Semiconductor LM1085 3A Low Dropout Positive Regulators Datasheet 13 p
- National Semiconductor LM1084 5A Low Dropout Positive Regulator Datasheet 13 p
- National Semiconductor LM1042 Fluid Level Detector Datasheet 8 p
- National Semiconductor LM1036 Dual DC Operated Tone/Volume/Balance Circuit Datasheet 10 p
- National Semiconductor LM108/LM208/LM308 Operational Amplifiers Datasheet 10 p
- National Semiconductor LM108A/LM208A/LM308A Operational Amplifiers Datasheet 8 p
- National Semiconductor LM107/LM207/LM307 Operational Amplifiers Datasheet 10 p
- National Semiconductor LM105/LM305/LM305A Voltage Regulators Datasheet 7 p
- National Semiconductor LM104/LM204/LM304 Negative Regulator Datasheet 6 p
- National Semiconductor LM102/LM302 Voltage Followers Datasheet 6 p
- National Semiconductor LM101A/LM201A/LM301A Operational Amplifiers Datasheet 17 p
- National Semiconductor LM1086 Low Dropout Positive Regulator Datasheet 15 p
- National Semiconductor LM1084 5A Low Dropout Positive Regulator Handbook 13 p
- National Semiconductor LM109/LM309 5‑Volt Regulator Handbook 8 p
- National Semiconductor LM1084 5A Low Dropout Positive Regulator Handbook 13 p
- National Semiconductor LM1085 3A Low Dropout Positive Regulator Datasheet 14 p
