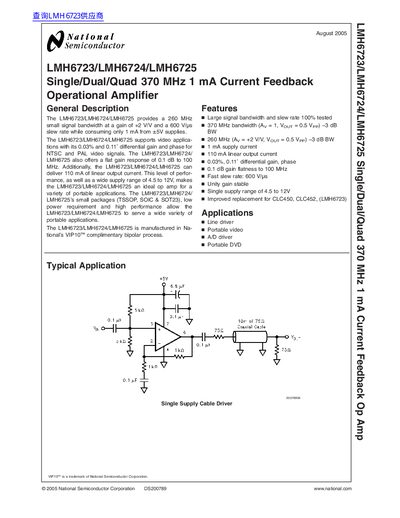

The LMH6723/LMH6724/LMH6725 is a single/dual/quad 370 MHz 1 mA current feedback operational amplifier, providing a small signal bandwidth of 260 MHz, a slew rate of 600 V/µs, and consuming only 1 mA from ±5V supplies. It supports video applications with a differential gain and phase of 0.03% and 0.11˚ for NTSC and PAL video signals. The LMH6723/LMH6724/LMH6725 also offers a flat gain response of 0.1 dB to 100 MHz and can deliver 110 mA of linear output current. It is suitable for a variety of portable applications.
The National Semiconductor LMH6723/LMH6724/LMH6725 family provides a 260 MHz small signal bandwidth at a gain of +2 V/V and a 600 V/us slew rate while consuming only 1 mA from +5V supplies. These devices support video applications with low differential gain and phase error, offering a flat gain response to 100 MHz.
| Supply Current | 1 mA |
|---|---|
| Linear Output Current | 110 mA |
| Differential Gain Error | 0.03% |
| Slew Rate | 600 V/us |
The device supports a wide supply range of 4.5 to 12V.
The amplifier consumes 1 mA from +5V supplies.
The LMH6723/LMH6724/LMH6725 can deliver 110 mA of linear output current.
