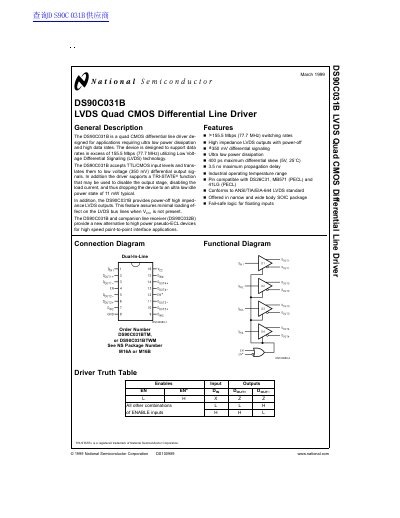

National Semiconductor DS90C031B Quad CMOS Differential Line Driver Datasheet
The DS90C031B is a quad CMOS differential line driver designed for applications requiring ultra-low power dissipation and high data rates. It supports data rates in excess of 155.5 Mbps using Low Voltage Differential Signaling (LVDS) technology. The device accepts TTL/CMOS input levels and translates them to low voltage (350 mV) differential output signals.
Read onlineNational Semiconductor DS90C031 specifications
| Data Rate | >155.5 Mbps |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Differential Output Voltage | 250 mV to 450 mV |
| Propagation Delay | 3.0 ns max |
| Differential Skew | 400 ps max |
| Idle Power | 11 mW typical |
Source: National Semiconductor DS90C031B Quad CMOS Differential Line Driver Datasheet
All National Semiconductor DS90C031 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate supported?
The device supports data rates in excess of 155.5 Mbps.
From: National Semiconductor DS90C031B Quad CMOS Differential Line Driver Datasheet
What is the typical idle power consumption?
The device drops to an ultra low idle power state of 11 mW typical.
From: National Semiconductor DS90C031B Quad CMOS Differential Line Driver Datasheet
What is the maximum data rate supported?
The device supports data rates in excess of 155.5 Mbps.
From: National Semiconductor DS90C031 Quad CMOS Differential Line Driver Datasheet
What input logic levels does the DS90C031 accept?
It accepts TTL/CMOS input levels.
From: National Semiconductor DS90C031 Quad CMOS Differential Line Driver Datasheet
