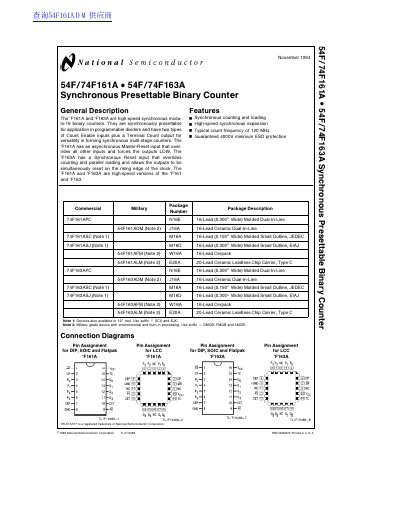

National Semiconductor 54F/74F161A 54F/74F163A handbook
The 54F/74F161A and 54F/74F163A are high-speed synchronous modulo-16 binary counters designed for use in programmable dividers and multi-stage counter applications. The 54F/74F161A features an asynchronous Master-Reset input, while the 54F/74F163A features a synchronous Reset input. Both devices offer two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous multi-stage counters.
Read onlineNational Semiconductor 54F specifications
| Typical Count Frequency | 120 MHz |
|---|---|
| Minimum ESD Protection | 4000V |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Military) | -55°C to +125°C |
| Supply Voltage (Commercial) | +4.5V to +5.5V |
| Maximum Count Frequency (54F) | 100 MHz |
Source: National Semiconductor 54F/74F161A 54F/74F163A handbook
