Start here

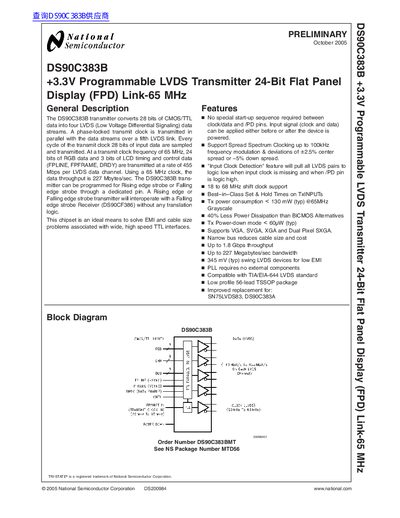

National Semiconductor DS90C383B +3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display (FPD) Link-65 MHz handbook
The DS90C383B is a +3.3V programmable LVDS transmitter designed for 24-bit Flat Panel Display (FPD) links operating up to 65 MHz. It converts 28 bits of CMOS/TTL data into four LVDS data streams and transmits a phase-locked clock in parallel over a fifth link. The device supports Spread Spectrum Clocking and includes an input clock detection feature to pull LVDS pairs low when the clock is missing.
Read onlineNational Semiconductor DS90C383 specifications
| Supply Voltage | 3.0 V to 3.6 V |
|---|---|
| Shift Clock Support | 18 to 68 MHz |
| Typical Power Dissipation | < 130 mW @ 65 MHz |
| LVDS Output Swing | 345 mV (typ) |
| Data Throughput | 227 Mbytes/sec |
| Package Type | 56-lead TSSOP |
All National Semiconductor DS90C383 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- National Semiconductor DS90C383B +3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display (FPD) Link-65 MHz handbook 11 p
- National Semiconductor DS90C383A/DS90CF383A +3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display (FPD) Link-65 MHz +3.3V LVDS Transmitter 24-Bit Flat Panel Display (FPD) Link-65 MHz handboo 11 p
- National Semiconductor DS90C383/DS90CF384 +3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display (FPD) Link 65 MHz +3.3V LVDS Receiver 24-Bit Flat Panel Display (FPD) Link 65 MHz 20 p
- National Semiconductor DS90C383B Datasheet 11 p
Questions answered in these manuals
Does the DS90C383B require a special start-up sequence?
No, no special start-up sequence is required between clock/data and /PD pins.
What is the maximum transmit clock frequency?
The device supports a transmit clock frequency up to 65 MHz.
What is the maximum transmit clock frequency?
The device supports a transmit clock frequency up to 65 MHz.
Is the device compatible with the TIA/EIA-644 standard?
Yes, the chipset is compatible with the TIA/EIA-644 LVDS standard.
What is the maximum transmit clock frequency?
The chipset supports a shift clock from 20 MHz to 65 MHz.
Is the transmitter programmable for edge strobe selection?
Yes, it can be programmed for Rising or Falling edge strobes via a dedicated pin.
