Key facts
- Model
- DM5417
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-06-12
Start here

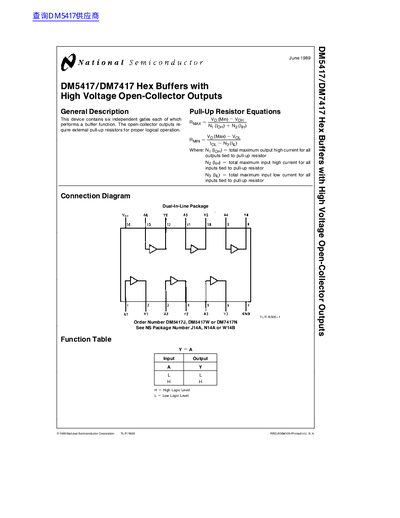

National Semiconductor DM5417/DM7417 Hex Buffers Datasheet
This document describes the DM5417 and DM7417, which are devices containing six independent buffer gates. These components utilize open-collector outputs that require external pull-up resistors for proper logical operation. The datasheet provides connection diagrams, function tables, and ordering information for various package types including ceramic dual-in-line (J), molded dual-in-line (N), and flat packages (W).
Read onlineNational Semiconductor DM5417 specifications
| Supply Voltage (Vcc) | 4.5V to 5.5V (DM5417), 4.75V to 5.25V (DM7417) |
|---|---|
| High Level Input Voltage (VIH) | Min 2V |
| Low Level Input Voltage (VIL) | Max 0.8V |
| Operating Temperature Range (DM5417) | -55°C to +125°C |
| Low to High Propagation Delay (TPLH) | Max 30ns |
Source: National Semiconductor DM5417/DM7417 Hex Buffers Datasheet
All National Semiconductor DM5417 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the order numbers available?
The available order numbers are DM5417J, DM5417W or DM7417N.
From: National Semiconductor DM5417/DM7417 Hex Buffers Datasheet
What are the operating temperature limits for military-grade units?
Military devices (DM54) operate from -55°C to +125°C.
From: National Semiconductor DM5417/DM7417 Hex Buffers Datasheet
What are the applications for these flip-flops?
Applications include buffer/storage registers, shift registers, and pattern generators.
Do these devices have complementary outputs?
Yes, the quad (175) version features complementary outputs from each flip-flop.
What is the typical propagation delay?
The typical propagation delay is 18 ns.
From: National Semiconductor 54173/DM54173/DM74173 TRI-STATE Quad D Registers Datasheet
What is the typical operating frequency?
The typical operating frequency is 30 MHz.
From: National Semiconductor 54173/DM54173/DM74173 TRI-STATE Quad D Registers Datasheet
