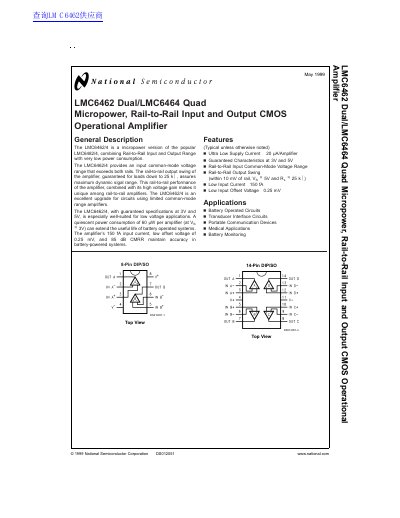

National Semiconductor LMC6462/LMC6464 Operational Amplifier Datasheet
The LMC6462/4 is a micropower version of the popular LMC6482/4, combining Rail-to-Rail Input and Output Range with very low power consumption. It provides an input common-mode voltage range that exceeds both rails and a rail-to-rail output swing guaranteed for loads down to 25 kΩ. The device is especially well-suited for low voltage applications with guaranteed specifications at 3V and 5V.
Read onlineNational Semiconductor LMC6462 specifications
| Supply Voltage | 3.0V to 15.5V |
|---|---|
| Input Offset Voltage (Typical) | 0.25 mV |
| Input Current | 150 fA |
| Quiescent Power Consumption (Typical) | 60 µW per amplifier |
| Gain-Bandwidth Product | 50 kHz |
Source: National Semiconductor LMC6462/LMC6464 Operational Amplifier Datasheet
All National Semiconductor LMC6462 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the operating supply voltage ranges?
The device operates with a supply voltage between 3.0V and 15.5V.
From: National Semiconductor LMC6462/LMC6464 Operational Amplifier Datasheet
Is the LMC6462/4 suitable for battery-operated systems?
Yes, it is well-suited for battery-operated systems due to its low quiescent power consumption of 60 µW per amplifier at 3V.
From: National Semiconductor LMC6462/LMC6464 Operational Amplifier Datasheet
What is the typical supply current of the LMC6462/LMC6464?
The typical supply current is 20 pA per amplifier.
From: National Semiconductor LMC6462/LMC6464 Operational Amplifier Datasheet
What supply voltage range can the devices operate over?
They operate from 3.0 V up to 15.5 V.
From: National Semiconductor LMC6462/LMC6464 Operational Amplifier Datasheet
