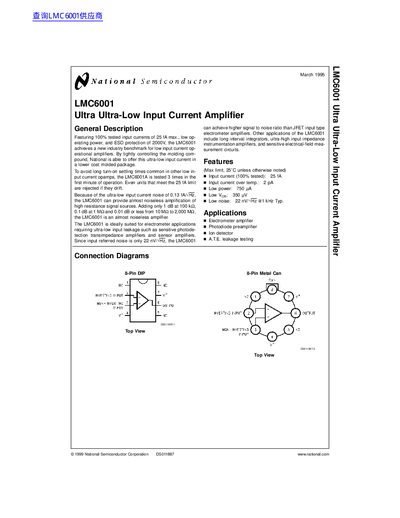

National Semiconductor LMC6001 Ultra-Low Input Current Amplifier Datasheet
The LMC6001 is an operational amplifier designed to achieve a new industry benchmark for low input current. It features 100% tested input currents of 25 fA maximum at 25°C, along with low operating power and ESD protection up to 2000V. The device incorporates a novel design topology that maintains rail-to-rail output swing even when driving large loads.
Read onlineNational Semiconductor LMC6001 specifications
| Input Current (Max) | 25 fA |
|---|---|
| Input Offset Voltage (Typical) | 350 µV |
| Supply Current (Max, 5V) | 750 µA |
| ESD Tolerance | 2 kV |
Source: National Semiconductor LMC6001 Ultra-Low Input Current Amplifier Datasheet
All National Semiconductor LMC6001 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input current for the LMC6001?
The device features 100% tested input currents of 25 fA max.
From: National Semiconductor LMC6001 Ultra-Low Input Current Amplifier Datasheet
What is the minimum supply voltage required for operation?
The amplifier operates with a supply voltage as low as 4.5V.
From: National Semiconductor LMC6001 Ultra-Low Input Current Amplifier Datasheet
What is the maximum input current of the LMC6001?
The LMC6001 has a maximum input current of 25 fA (100 % tested).
From: National Semiconductor LMC6001 Ultra Ultra-Low Input Current Amplifier Handbook
What temperature range can the LMC6001 operate in?
It operates from –40 °C to +85 °C.
From: National Semiconductor LMC6001 Ultra Ultra-Low Input Current Amplifier Handbook
