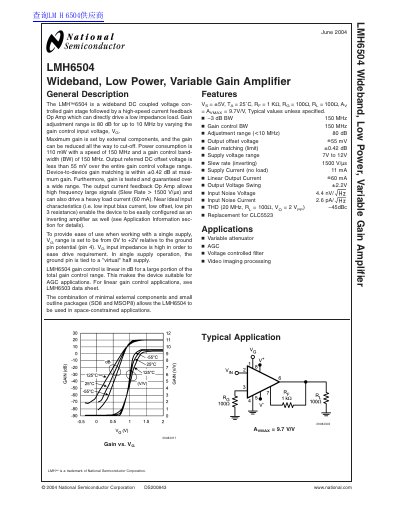

National Semiconductor LMH6504 Wideband Low Power Variable Gain Amplifier Datasheet
The LMH6504 is a wideband DC coupled voltage controlled gain stage followed by a high-speed current feedback Op Amp which can directly drive a low impedance load. It features an 80 dB gain adjustment range for up to 10 MHz and power consumption of 110 mW at 150 MHz speed.
Read onlineNational Semiconductor LMH6504 specifications
| Gain Adjustment Range | 80 dB |
|---|---|
| Supply Voltage Range | 7V to 12V |
| Supply Current (No Load) | 8.5 mA to 15 mA |
Source: National Semiconductor LMH6504 Wideband Low Power Variable Gain Amplifier Datasheet
All National Semiconductor LMH6504 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum gain adjustment range of the LMH6504 at frequencies up to 10 MHz?
The device provides a gain adjustment range of 80 dB for frequencies up to 10 MHz.
From: National Semiconductor LMH6504 Wideband Low Power Variable Gain Amplifier Datasheet
What is the maximum output current the LMH6504 can drive?
The amplifier can drive a heavy load current of 60 mA.
From: National Semiconductor LMH6504 Wideband Low Power Variable Gain Amplifier Datasheet
What is the supply voltage range for the LMH6504?
The device operates from 7 V to 12 V.
From: National Semiconductor LMH6504 Variable Gain Amplifier Datasheet
What is the maximum output current the LMH6504 can drive?
It can source up to 60 mA of linear output current.
From: National Semiconductor LMH6504 Variable Gain Amplifier Datasheet
