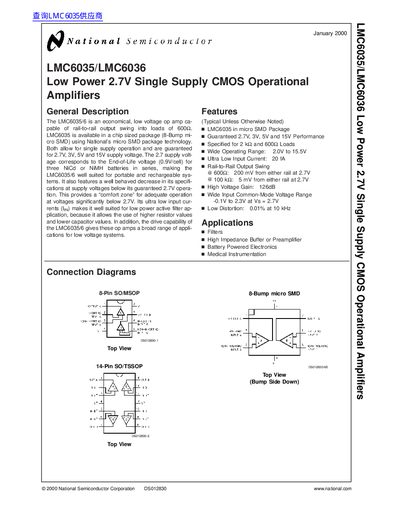

National Semiconductor LMC6035/LMC6036 Operational Amplifiers Datasheet
The document describes the LMC6035 and LMC6036 as economical, low voltage operational amplifiers capable of rail-to-rail output swing. These devices are designed for single supply operation with guaranteed performance at 2.7V, making them suitable for portable systems powered by three NiCd or NiMH batteries in series.
Key features include ultra-low input currents (typical 20 fA) which allow the use of higher resistor values and lower capacitor values in low power active filter applications. The amplifiers feature a wide operating range from 2.0V to 15.5V and are available in various packages including SO, MSOP, TSSOP, and micro SMD.
National Semiconductor LMC6035 specifications
| Supply Voltage Range | 2.0V to 15.5V |
|---|---|
| Input Current (Typical) | 20 fA |
| Voltage Gain | 126dB |
| Total Harmonic Distortion | 0.01% |
Source: National Semiconductor LMC6035/LMC6036 Operational Amplifiers Datasheet
All National Semiconductor LMC6035 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum guaranteed supply voltage?
The device is guaranteed for operation at a supply voltage of 2.7V.
From: National Semiconductor LMC6035/LMC6036 Operational Amplifiers Datasheet
What battery configuration supports the minimum voltage?
The 2.7V supply corresponds to three NiCd or NiMH batteries in series.
From: National Semiconductor LMC6035/LMC6036 Operational Amplifiers Datasheet
What supply voltage range can the LMC6035/LMC6036 operate over?
They operate from 2.0 V up to 15.5 V.
From: National Semiconductor LMC6035/LMC6036 Operational Amplifier Datasheet
What is the typical input offset voltage of the LMC6035?
Typical input offset voltage is 0.5 mV (maximum 5 mV).
From: National Semiconductor LMC6035/LMC6036 Operational Amplifier Datasheet
