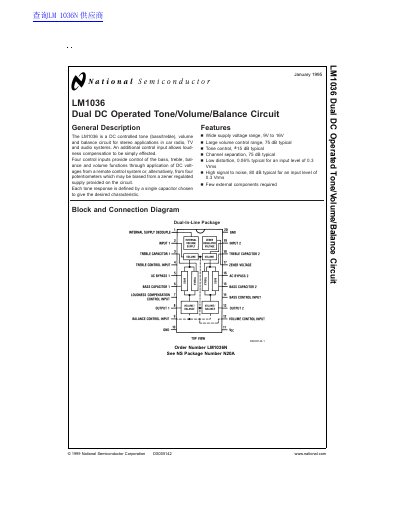

The LM1036 is a DC controlled tone (bass/treble), volume and balance circuit for stereo applications in car radio, TV and audio systems. It has a wide supply voltage range and a large volume control range, as well as low distortion and high signal-to-noise ratio.
The LM1036 is a dual DC controlled tone (bass/treble), volume, and balance circuit designed for stereo applications in car radios, TVs, and audio systems. It features an additional control input for loudness compensation and allows control of bass, treble, balance, and volume functions via DC voltages from a remote system or potentiometers biased from an internal zener regulated supply.
| Supply Voltage Range | 9V to 16V |
|---|---|
| Volume Control Range | 75 dB typical |
| Tone Control Boost/Cut | +15 dB typical |
| Channel Separation | 75 dB typical |
| Total Harmonic Distortion | 0.06% typical |
| Signal to Noise Ratio | 80 dB typical |
| Operating Temperature Range | 0°C to +70°C |
| Supply Current | 35 to 45 mA |
The typical supply voltage range is 9V to 16V.
Yes, it includes an internal zener regulated output voltage of 5.4V.
The typical volume control range is 75 dB.
