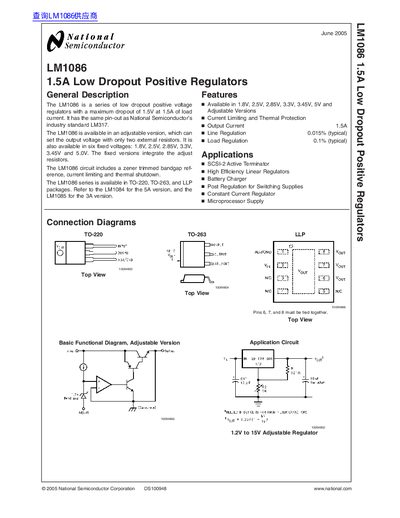

The LM1086 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 1.5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1086 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in six fixed voltages: 1.8V, 2.5V, 2.85V, 3.3V, 3.45V and 5.0V. The fixed versions integrate the adjust resistors. The LM1086 circuit includes a zener trimmed bandgap ref- erence, current limiting and thermal shutdown.
The LM1086 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 1.5A of load current. It features the same pin-out as National Semiconductor's industry standard LM317 and includes current limiting, thermal shutdown, and high efficiency. The device is available in adjustable versions that set output voltage with two external resistors, or in six fixed voltages: 1.8V, 2.5V, 2.85V, 3.3V, 3.45V, and 5.0V.
| Output Current | 1.5A |
|---|---|
| Maximum Dropout Voltage | 1.5V at 1.5A load current |
| Line Regulation (Typical) | 0.015% |
| Load Regulation (Typical) | 0.1% |
| Reference Voltage | 1.25V |
Fixed versions are available in 1.8V, 2.5V, 2.85V, 3.3V, 3.45V, and 5.0V.
The series is available in TO-220, TO-263, and LLP packages.
Yes, the circuit includes current limiting and thermal shutdown.
