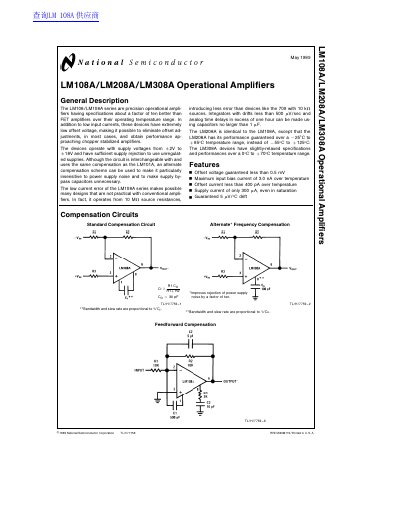

LM108A�LM208A�LM308A operational amplifiers
The document describes the LM108/LM108A series as precision operational amplifiers with specifications about a factor of ten better than FET amplifiers over their operating temperature range. Key features include extremely low input currents (maximum 3.0 nA), very low offset voltage (guaranteed less than 0.5 mV), and the ability to operate from unregulated supplies between ±2V and ±18V.
| Input Offset Voltage (Max) | 0.5 mV |
|---|---|
| Maximum Input Bias Current | 3.0 nA |
| Supply Voltage Range | +/-2V to +/-18V |
| Common Mode Rejection Ratio | 96 dB |
The LM208A has its performance guaranteed over a -25°C to +85°C temperature range.
Yes, they have sufficient supply rejection to allow for the use of unregulated supplies.
The maximum junction temperature of the LM108A is 150°C.
