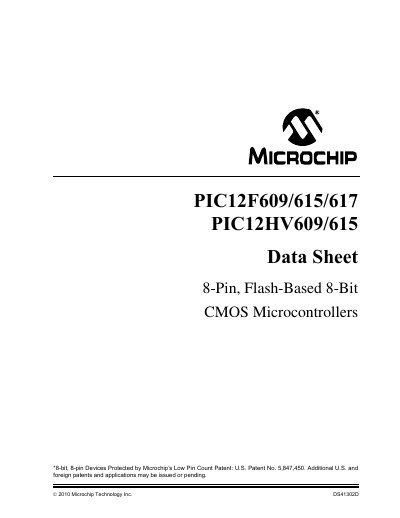

Technical data sheet for the 8‑pin PIC12F609/615/617/12HV609/615 flash‑based 8‑bit CMOS microcontrollers.
The PIC12F609/615/617/12HV609/615 family consists of 8‑pin flash‑based 8‑bit CMOS microcontrollers offered in PDIP, SOIC, MSOP and DFN packages. The document provides detailed information on the CPU core, memory organization, oscillator options, I/O ports, timers, comparator, ADC, and special features such as low‑power modes and code protection.
Key sections include a device overview, memory organization, peripheral modules (Timer0, Timer1, Timer2, Comparator, ADC, Capture/Compare/PWM), electrical specifications, packaging details, and revision history. The data sheet also lists development support resources and contact information for Microchip.
| Operating Speed | DC – 20 MHz oscillator/clock input |
|---|---|
| Voltage Range (standard devices) | 2.0 V to 5.5 V |
| Voltage Range (HV devices) | 2.0 V to user defined maximum |
| Standby Current | 50 nA @ 2.0 V (typical) |
| Operating Current (32 kHz) | 11 µA @ 2.0 V (typical) |
| Flash Write Endurance | 100 000 write cycles |
| Flash Retention | > 40 years |
| Maximum Current Out of VSS Pin | 95 mA |
| Maximum Current Into VDD Pin | 95 mA |
The standard devices operate from 2.0 V to 5.5 V.
Typical standby current is 50 nA at 2.0 V.
The flash memory can be written up to 100 000 times.
