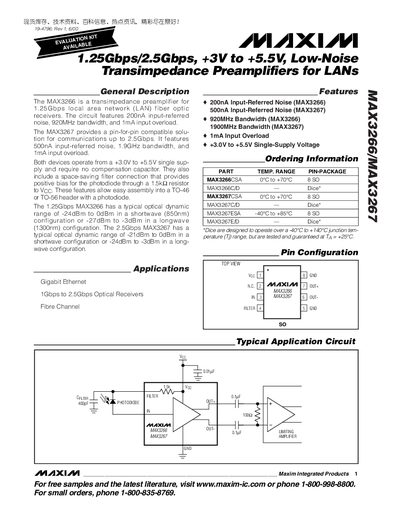

Maxim Integrated MAX3266/MAX3267 Transimpedance Preamplifier Datasheet
The MAX3266 and MAX3267 are low‑noise transimpedance preamplifiers for 1.25 Gbps and 2.5 Gbps LAN fiber‑optic receivers. Both devices operate from a single +3.0 V to +5.5 V supply and feature built‑in bias filtering for photodiodes.
The document provides electrical characteristics, absolute maximum ratings, pin descriptions, typical operating curves, layout recommendations, and optical power relations for designing high‑speed optical links.
Maxim MAX3267 specifications
| Input‑Referred Noise (MAX3266) | 200 nA |
|---|---|
| Input‑Referred Noise (MAX3267) | 500 nA |
| Bandwidth (MAX3266) | 920 MHz |
| Bandwidth (MAX3267) | 1.9 GHz |
| Input Overload | 1 mA |
| Supply Voltage Range | +3.0 V to +5.5 V |
| Supply Current (MAX3266) | 26‑50 mA |
