Start here

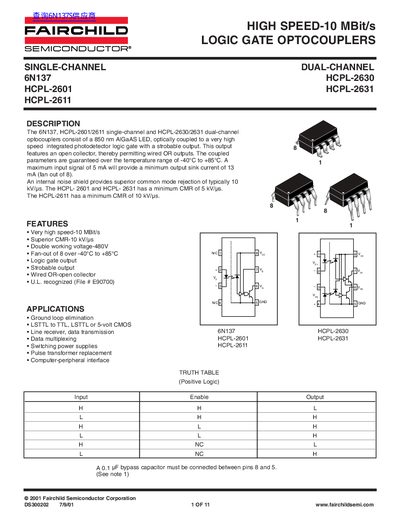

FAIRCHILD 6N137 HCPL-2630 HCPL-2601 HCPL-2631 HCPL-2611 handbook
This document provides technical specifications for Fairchild Semiconductor's high-speed logic gate optocouplers, specifically the 6N137, HCPL-2630, HCPL-2601, HCPL-2631, and HCPL-2611 models. These devices consist of an 850 nm AlGaAS LED optically coupled to a high-speed integrated photodetector logic gate with a strobable output.
Read onlineFairchild HCPL2601 specifications
| Operating Temperature | -40 to +85 °C |
|---|---|
| Maximum Input Current (Single Channel) | 5 mA |
| Maximum Input Current (Dual Channel) | 30 mA |
| Propagation Delay Time | 20 ns |
| Common Mode Transient Immunity | 10 kV/us |
| Double Working Voltage | 480V |
| Fan-out | 8 |
Source: FAIRCHILD 6N137 HCPL-2630 HCPL-2601 HCPL-2631 HCPL-2611 handbook
All Fairchild HCPL2601 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for these optocouplers?
The coupled parameters are guaranteed over the temperature range of -40°C to +85°C.
From: FAIRCHILD 6N137 HCPL-2630 HCPL-2601 HCPL-2631 HCPL-2611 handbook
What is the maximum input signal current?
A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA.
From: FAIRCHILD 6N137 HCPL-2630 HCPL-2601 HCPL-2631 HCPL-2611 handbook
What is the fan‑out capability of these optocouplers?
Each device can drive up to 8 TTL loads.
From: Fairchild 6N137 HCPL2601 HCPL2611 HCPL2630 HCPL2631 Datasheet
What temperature range is recommended for operation?
The recommended operating temperature range is –40 °C to +85 °C.
From: Fairchild 6N137 HCPL2601 HCPL2611 HCPL2630 HCPL2631 Datasheet
