Key facts
- Brand
- Fairchild
- Model
- HCPL-4502
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-12
Start here

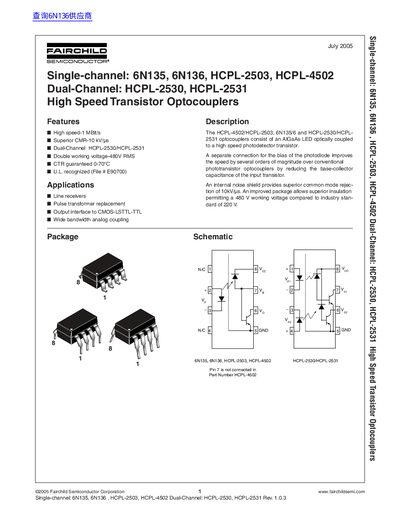

FAIRCHILD 6N135 6N136 HCPL-2503 HCPL-4502 HCPL-2530 HCPL-2531 High Speed Transistor Optocouplers handbook
Datasheet 12 pages · 574 KB · EN
This document is a technical datasheet for Fairchild Semiconductor's High Speed Transistor Optocouplers. The product line includes single-channel devices (6N135, 6N136, HCPL-2503, HCPL-4502) and dual-channel devices (HCPL-2530, HCPL-2531). These components feature an AlGaAs LED optically coupled to a high-speed photodetector transistor with a separate bias connection for the photodiode.
Read onlineFairchild HCPL-4502 specifications
| High Speed Data Rate | 1 MBit/s |
|---|---|
| Common Mode Rejection Ratio | 10 kV/us |
| Working Voltage (Single/Dual) | 480 V RMS |
| Operating Temperature Range | -55 to +100 °C |
| Common Mode Transient Immunity | 10,000 V/us |
All Fairchild HCPL-4502 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature for these optocouplers?
The operating temperature range is -55 to +100 °C.
What is the maximum working voltage for the HCPL-2530 and HCPL-2531 models?
These dual-channel models have a working voltage of 480 V RMS.
What is the maximum operating temperature for these optocouplers?
The device can operate at temperatures up to 100°C.
What is the minimum current transfer ratio for the 6N135 at 25°C?
The minimum current transfer ratio for the 6N135 is 7%.
