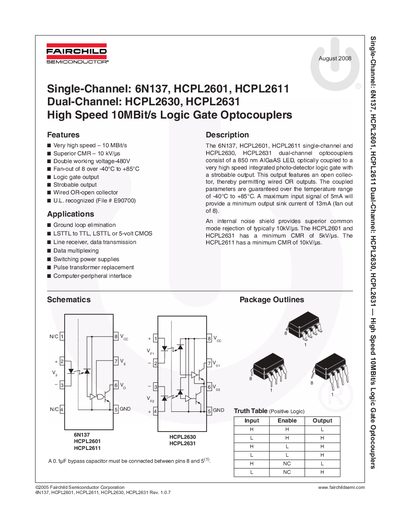

High Speed 10MBit/s Logic Gate Optocouplers
This datasheet provides the electrical characteristics, absolute maximum ratings, and recommended operating conditions for Fairchild's 6N137, HCPL2601, HCPL2611, HCPL2630, and HCPL2631 optocouplers. It includes detailed tables of input/output voltages, currents, propagation delays, fan‑out capability, and isolation performance.
The document also contains typical performance curves, test circuit diagrams, tape‑and‑reflow specifications, and legal notices such as trademark information and life‑support usage restrictions.
| Storage Temperature | -55 to +125 °C |
|---|---|
| Operating Temperature | -40 to +85 °C |
| Input Forward Voltage (typical, 10 mA) | 1.8 V |
| Fan‑out (TTL load) | 8 |
| Maximum Emitter Input Current (single channel) | 50 mA |
Each device can drive up to 8 TTL loads.
The recommended operating temperature range is –40 °C to +85 °C.
The emitter can handle up to 50 mA in single‑channel mode.
No, Fairchild products are not authorized for use as critical components in life‑support devices.
