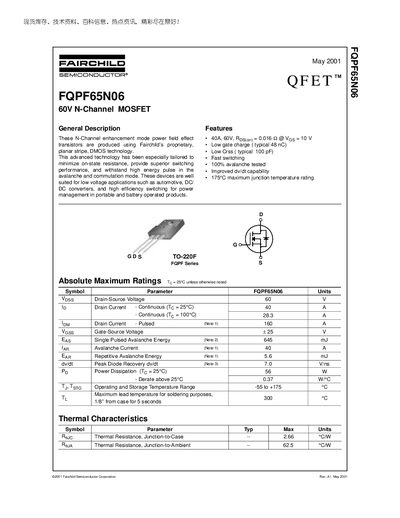

Fairchild FQPF65N06 N-Channel MOSFET Datasheet
The FQPF65N06 is a 60 V N‑Channel enhancement mode power MOSFET fabricated with Fairchild’s planar stripe DMOS technology. It is designed for low‑voltage applications such as automotive, DC‑DC converters, and high‑efficiency power management in portable and battery‑operated products.
Key specifications include a continuous drain current of 40 A at 25 °C, a pulsed drain current rating of 160 A, typical on‑resistance of 0.016 Ω, gate charge of 48 nC, and a maximum junction temperature of 175 °C. The device is supplied in a TO‑220F package with thermal resistance values of 2.66 °C·W (junction‑to‑case) and 62.5 °C·W (junction‑to‑ambient).
Fairchild FQPF65N06 specifications
| Drain‑Source Voltage (VDS) | 60 V |
|---|---|
| Continuous Drain Current (ID) @ 25 °C | 40 A |
| Pulsed Drain Current | 160 A |
| Typical Gate Charge (Qg) | 48 nC |
| On‑Resistance (RDS(on)) | 0.016 Ω (typical) |
| Maximum Junction Temperature (Tj) | 175 °C |
| Power Dissipation (PD) @ 25 °C | 56 W |
| Thermal Resistance, Junction‑to‑Case (RθJC) | 2.66 °C·W |
| Thermal Resistance, Junction‑to‑Ambient (RθJA) | 62.5 °C·W |
