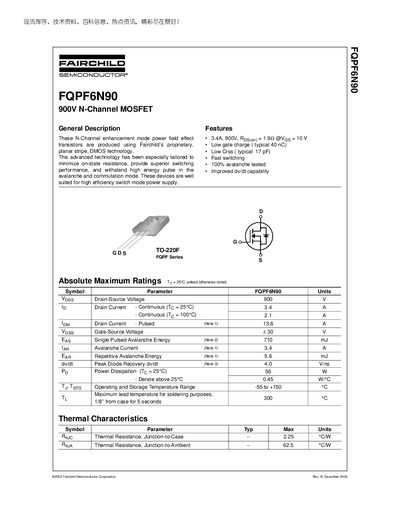

Fairchild FQPF6N90 N-Channel MOSFET Datasheet
The FQPF6N90 MOSFET is a 900 V N‑channel enhancement mode power transistor built with Fairchild’s planar stripe DMOS technology. It offers low on‑state resistance, low gate charge, fast switching and 100 % avalanche testing, making it suitable for high‑efficiency switch‑mode power supplies.
The datasheet provides absolute maximum ratings, detailed electrical characteristics (on‑resistance, gate charge, capacitances, switching times), thermal parameters, package dimensions (TO‑220F) and test circuit diagrams. It also includes trademark, disclaimer and product status information.
Fairchild FQPF6N90 specifications
| Drain‑Source Voltage (VDS) | 900 V |
|---|---|
| Continuous Drain Current (ID) @ 25 °C | 3.4 A |
| Gate‑Source Voltage (VGS) | ±30 V |
| On‑Resistance (RDS(on)) | 1.92 Ω @ VGS=10 V |
| Power Dissipation (PD) @ 25 °C | 56 W |
| Junction‑to‑Case Thermal Resistance (RθJC) | 2.25 °C·W |
| Junction‑to‑Ambient Thermal Resistance (RθJA) | 62.5 °C·W |
