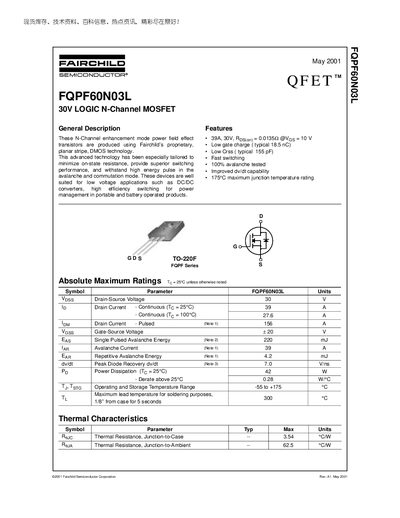

Fairchild FQPF60N03L Logic N-Channel MOSFET Datasheet
The FQPF60N03L MOSFET is a 30 V logic N‑Channel device built with Fairchild’s planar stripe DMOS technology, offering low on‑state resistance, fast switching, and 100 % avalanche testing. It is suited for low‑voltage applications such as DC/DC converters and power management in portable, battery‑operated products.
Key specifications include a continuous drain current of 39 A at 25 °C, pulsed current of 156 A, power dissipation of 42 W, and a maximum junction temperature of 175 °C. The device is supplied in a TO‑220F package with thermal resistance values of 3.54 °C·W (junction‑to‑case) and 62.5 °C·W (junction‑to‑ambient).
Fairchild FQPF60N03L specifications
| Drain-Source Voltage (Vds) | 30 V |
|---|---|
| Continuous Drain Current (Id) @ 25 °C | 39 A |
| Continuous Drain Current (Id) @ 100 °C | 27.6 A |
| Pulsed Drain Current (Id) (Note 1) | 156 A |
| Gate-Source Voltage (Vgs) | ±20 V |
| Power Dissipation (Pd) @ 25 °C | 42 W |
| Maximum Junction Temperature (Tj) | 175 °C |
| Thermal Resistance, Junction‑to‑Case (Rjc) | 3.54 °C·W |
| Thermal Resistance, Junction‑to‑Ambient (Rja) | 62.5 °C·W |
| Reverse Transfer Capacitance (Crss) | 155 pF |
Source: Fairchild FQPF60N03L Logic N-Channel MOSFET Datasheet
All Fairchild FQPF60N03L documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current at 25 °C?
The device can handle a continuous drain current of 39 A at 25 °C.
What is the maximum power dissipation rating?
The maximum power dissipation is 42 W when the junction temperature is 25 °C.
What is the maximum continuous drain current?
The device can conduct up to 39 A continuously at a case temperature of 25 °C.
From: Fairchild FQPF60N03L 30V Logic N-Channel MOSFET Datasheet
What is the maximum gate‑source voltage?
The MOSFET is rated for a gate‑source voltage of ±20 V.
From: Fairchild FQPF60N03L 30V Logic N-Channel MOSFET Datasheet
