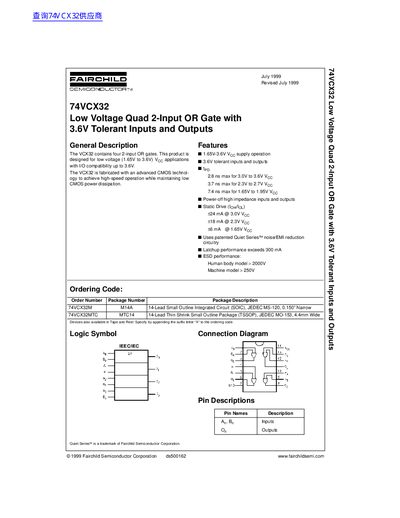

Fairchild Semiconductor 74VCX32 Low Voltage Quad 2-Input OR Gate Datasheet
The 74VCX32 is a low voltage quad 2-input OR gate designed for Vcc applications ranging from 1.65V to 3.6V. It utilizes advanced CMOS technology to ensure high-speed operation with low power dissipation and includes patented Quiet Series circuitry for noise and EMI reduction.
The device features 3.6V tolerant inputs and outputs, allowing compatibility with higher voltage logic levels. It operates with a supply voltage of 1.65V to 3.6V and offers propagation delays as low as 2.8 ns at 3.0V to 3.6V Vcc. The datasheet provides detailed electrical characteristics, absolute maximum ratings, and physical dimensions for available SOIC and TSSOP packages.
Fairchild 74VCX32 specifications
| Supply Voltage (Vcc) | 1.65V to 3.6V |
|---|---|
| Input/Output Tolerance | 3.6V |
| Max Propagation Delay (3.0V to 3.6V Vcc) | 2.8 ns |
| Max Propagation Delay (2.3V to 2.7V Vcc) | 3.7 ns |
| Max Propagation Delay (1.65V to 1.95V Vcc) | 7.4 ns |
| Latchup Performance | Exceeds 300 mA |
| ESD Performance (Human Body Model) | > 2000V |
| ESD Performance (Machine Model) | > 250V |
| Free Air Operating Temperature | -40°C to +85°C |
Source: Fairchild Semiconductor 74VCX32 Low Voltage Quad 2-Input OR Gate Datasheet
All Fairchild 74VCX32 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the 74VCX32?
The device operates with a supply voltage (Vcc) ranging from 1.65V to 3.6V.
From: Fairchild Semiconductor 74VCX32 Low Voltage Quad 2-Input OR Gate Datasheet
Are the inputs and outputs 3.6V tolerant?
Yes, the 74VCX32 features 3.6V tolerant inputs and outputs.
From: Fairchild Semiconductor 74VCX32 Low Voltage Quad 2-Input OR Gate Datasheet
What is the operating supply voltage range for the 74VCX32?
The device operates from 1.2 V to 3.6 V supply voltage.
What is the typical propagation delay of the 74VCX32?
The typical propagation delay is 2.8 ns max when powered between 3.0 V and 3.6 V.
