Key facts
- Brand
- Casio
- Model
- QV-200
- Category
- Digital cameras
- Documents
- 3
- Languages
- EN
- Last added
- 2012-06-06
Start here

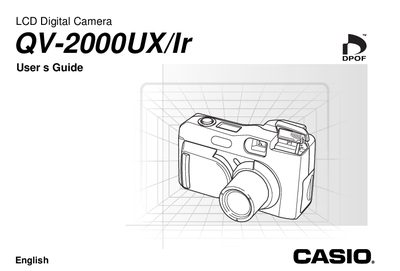

Casio QV-2000UX/Ir Digital Camera User Manual
The document serves as a comprehensive user guide for the Casio QV-2000UX/Ir digital camera. It details operational procedures including loading batteries, setting the date and time, and using various recording modes such as movie, panorama, and night scene. The guide also explains how to play back images, manage memory cards, and connect the device to other equipment like computers or televisions.
Read onlineCasio QV-200 specifications
| Monitor Screen | 1.8" TFT, low-glare color LCD (122,100 pixels, 555 x 220) |
|---|---|
| Viewfinder | LCD Monitor or optical viewfinder |
| Clock | Built-in quartz digital timepiece for image data: auto calendar up to 2049 |
| Input/Output Terminals | DIGITAL IN/OUT, USB port (special mini port), AC adaptor connector, VIDEO OUT (NTSC, PAL) |
| Infrared Communication | IrDA1.1: IrTran-P compliant |
| Power Supply (Batteries) | Four AA-size alkaline or lithium batteries; Four AA-size nickel-hydrogen rechargeable batteries |
| Battery Life (Recording - Lithium) | Approximately 920 shots |
All Casio QV-200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the operating temperature range for this camera?
The camera is designed for use in temperatures ranging from 0°C to 40°C (32°F to 104°F).
From: Casio QV-200 Liquid Crystal Digital Camera Owner's Manual
What happens if you remove batteries during a record operation?
Removing batteries or disconnecting the AC adaptor during a record operation can cause data stored in the camera's memory to become corrupted.
From: Casio QV-200 Liquid Crystal Digital Camera Owner's Manual
What happens if the time and date are not set before using the camera?
File name assignment and timestamping will not be performed correctly.
How do I turn on the camera power?
Slide the lens cover open completely; sliding it partway initially causes the flash to pop up.
How can I connect the camera to a television?
Use the video out connector and follow the instructions in the “Connecting to a Television” section (page E‑95).
