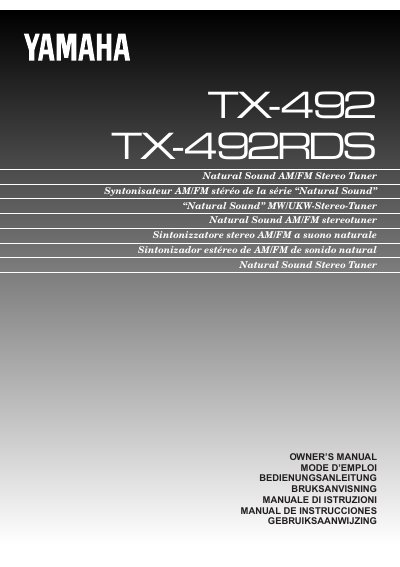

Yamaha TX-492/TX-492RDS Stereo Tuner Owner's Manual
The Yamaha TX-492 and TX-492RDS are sophisticated stereo tuners featuring automatic preset tuning, multi-status station memory, and direct PLL synthesizer tuning. The TX-492RDS model additionally supports Multi-Functions for RDS Broadcast Reception.
Before operation, users must verify the supplied accessories, including indoor FM and AM loop antennas, audio connection cords, and a remote control sensor compatible with Yamaha amplifiers. Proper installation requires careful antenna placement to minimize interference from traffic or metal structures.
Yamaha TX-492 specifications
| FM Tuning Range (U.S./Canada) | 87.5 to 107.9 MHz |
|---|---|
| FM Tuning Range (Australia) | 87.5 to 108 MHz |
| Power Supply (U.S./Canada) | AC 120 V, 60 Hz |
| Power Supply (Australia) | AC 240 V, 50 Hz |
| Weight | 3.2 kg (7 lb) |
| FM Stereo Impedance | 75 Ω Stereo |
All Yamaha TX-492 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I switch between automatic and manual tuning?
Press the TUNING MODE (AUTO/MAN'L MONO) button until 'AUTO' lights up on the display for automatic mode, or press it again to turn 'AUTO' off for manual mode.
What are the supported voltage ratings for this unit?
The tuner operates on 110-120/220-240V AC at 50/60 Hz.
What voltage options does the TX-492 support?
The unit supports voltages of 110-120/220-240V AC at 50/60 Hz.
From: Yamaha TX-492 Natural Sound AM/FM Stereo Tuner Owner's Manual
How many preset stations can the tuner store?
The tuner features a 40 station random access preset capability.
From: Yamaha TX-492 Natural Sound AM/FM Stereo Tuner Owner's Manual
How should the voltage selector be set before connecting the unit to power?
The voltage selector on the rear panel must be set for the local mains voltage (110‑120 V or 220‑240 V) before plugging the unit into the AC supply.
What accessories are supplied with the Yamaha TX‑492?
The package includes an indoor FM antenna, an AM loop antenna, and an audio connection cord.
