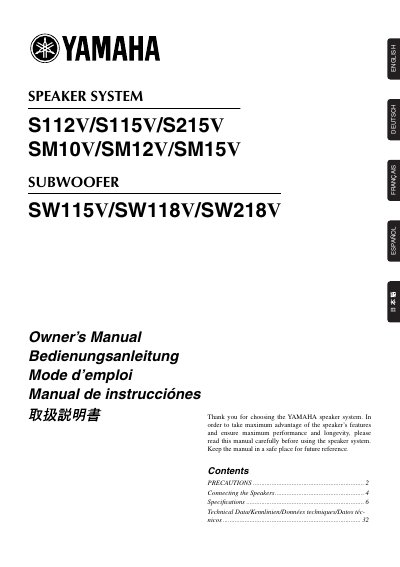

Yamaha S112V/S115V/S215V/SM10V/SM12V/SM15V/SW115V/SW118V/SW218V Speaker System Owner's Manual

This manual introduces the use of the YAMAHA speaker system, including precautions for use, connecting speakers, specifications, etc.

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 11
File format: PDF
File size: 491 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: CE31FB02FCB58881517DA4F70D3403C4
PDF: Yamaha S112V/S115V/S215V/SM10V/SM12V/SM15V/SW115V/SW118V/SW218V Speaker System Owner's Manual PDF

About this manual

This Owner's Manual covers the setup, operation, and safety precautions for Yamaha S112V, S115V, S215V, SM10V, SM12V, SM15V, SW115V, SW118V, and SW218V speaker systems. It includes detailed instructions on connecting speakers using phone plugs or Neutrik NL4FC connectors, handling the subwoofers, and matching impedance with power amplifiers to prevent damage.

What's inside

PRECAUTIONS
Connecting the Speakers
Impedance Considerations
Subwoofers and the P-Series Power Amplifiers
Specifications
Technical Data

Specifications

Enclosure Type	Bass reflex type
Nominal Impedance (SM10V/S112V)	8 ohms
Frequency Response (SM10V)	70Hz-20kHz
Frequency Response (S115V)	42Hz-16kHz
Input Connectors	1/4" phone jack x 2, SPEAKON Neutrik NL4MP x 2

Frequently asked questions

What type of cable should be used for speaker connections?

Use only speaker cables for connecting speakers to the speaker jacks. Use of other types of cables may result in fire.

Can S112V and S115V speakers be connected in parallel?

Yes, a pair of parallel-connected 8-ohm speakers have a total impedance of 4 ohms, and two of these can safely be paralleled on one output.

Download PDF (491 KB)
