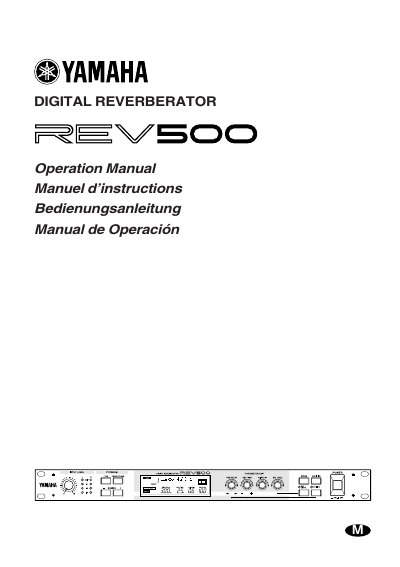

Yamaha REV500 Digital Reverberator Operation Manual
The Yamaha REV500 is a true stereo processor featuring two inputs and two outputs. It includes 100 preset programs and allows users to edit an additional 100 programs using four rotary controls for basic parameters. The unit supports both 1/4" phone and XLR connectors with +4 dB input and output level options.
Read onlineYamaha REV500 specifications
| A/D and D/A converters | 20-bit |
|---|---|
| Sampling rate | 44.1 kHz |
| Preset programs | 100 |
| User memory capacity | 100 programs |
| Inputs and outputs | two inputs and two outputs |
All Yamaha REV500 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How often should the backup battery be replaced?
Yamaha recommends having the battery replaced by a qualified service center every five years to prevent data loss.
What happens if the backup battery voltage falls below a certain level?
The message 'LOW BATTERY' will appear in the LCD when you turn the unit on, indicating that user memory contents have been lost.
What should I do if the REV500 causes interference with other devices?
Relocate the REV500 or the affected device, use a different circuit, or install an AC line filter as suggested by the FCC notice.
How do I turn the REV500 on and off?
Use the POWER switch on the rear panel; it turns the unit on and off.
