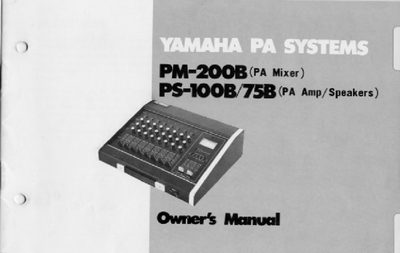

Yamaha PM-200B/PS-100B/75B PA System Owner's Manual
This document serves as an owner's guide for the Yamaha PM-200B PA Mixer and the PS-100B or PS-75B Power Amplifier/Speaker systems. It provides essential precautions for initial setup, such as verifying voltage settings before plugging in the power cord to prevent damage to transistorized audio units.
The guide details the front and rear panel controls for the mixer, including input selectors, volume sliders, tone controls (bass/treble), and acoustic control settings. It also explains how to connect microphones, echo units, tape decks, and PA speakers using the provided jacks and diagrams.
Yamaha PS-100B specifications
| Channels | 8 |
|---|---|
| Dimensions (Mixer) | 50.9 x 43.7 x 15.4cm |
| Weight (Mixer) | 11 kg (24.2 Ibs.) |
| Output Power (PS-75B) | 60 Wrms |
| Power Consumption (PS-100B) | 250 Ww |
All Yamaha PS-100B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What voltage settings are available for the power cord?
The unit supports voltage settings of 110, 130, 220, and 240V.
What type of connectors are used for the Input Jacks?
The input jacks are telephone type connectors designed for low impedance microphones.
What voltage settings are available for the power cord?
The unit supports voltage settings of 110, 130, 220, and 240V.
How large are the dimensions of the PM-200B unit?
The PM-200B measures 50.9 x 43.7 x 15.4cm (Wx D x H).
