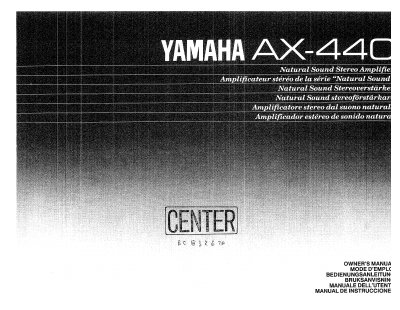

Yamaha AX-440 Natural Sound Stereo Amplifier Owner's Manual

About this manual

This document is the owner's manual for the Yamaha AX-440 Integrated Amplifier. It provides safety precautions regarding location, ventilation, and handling of power cords and switches. The guide includes specific instructions for Canadian models concerning polarized plugs.

The manual details how to connect various audio components such as tuners, CD players, turntables, tape decks, and video players. It explains the function of front panel controls including volume, bass, treble, balance, loudness, and input selection.

What's inside

• Precautions
• Location and Ventilation
• Power Cord Handling
• Connecting Speakers
• Connecting a Turntable
• Connecting a Tuner
• Connecting CD and Video/Aux Jacks
• Connecting Tape Decks
• AC Outlets Usage
• Front Panel Controls

Specifications

Frequently asked questions

How should I connect a turntable?

Connect the output cords of the turntable to the amplifier Phono jacks and connect the ground wire to the GND terminal.

What are the maximum wattage limits for the AC outlets on this amplifier?

The unswitched outlet supports up to 200 watts, while the two switched outlets support a combined limit of 150 watts for general models or 100 watts for Canadian models.

What voltage settings are available on the amplifier's selector switch?

The unit supports AC voltages of 110/120/220/240 V at frequencies of 50/60 Hz.
