Start here

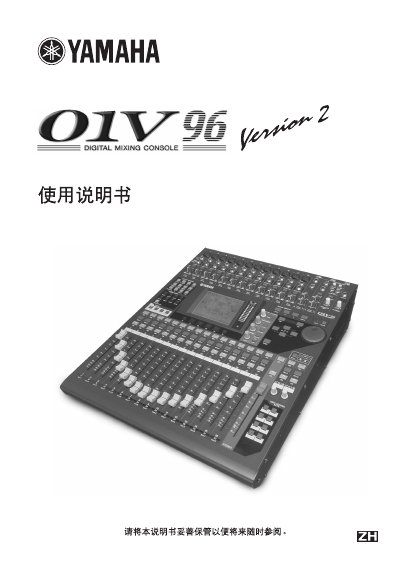

Yamaha 01V96 Digital Mixing Console User Manual
This document serves as the official instruction guide for the Yamaha 01V96 digital mixing console. It details the setup, basic operations, and specific functions of the device, including input/output channels, scene memory, and DAW control protocols.
The manual also highlights new features introduced in the second version (firmware 2.0) of the unit, such as pre-fader AUX sends, surround panning, and enhanced group/mastering capabilities. It includes safety warnings regarding power usage, ventilation, and battery backup maintenance. This manual is written in Chinese.
Yamaha 01V96 specifications
| Display Resolution (Windows) | 1024 x 768 pixels, 256 colors or higher |
|---|---|
| Display Resolution (Macintosh) | 1024 x 768 pixels, 256 colors or higher |
| Memory (Windows) | 512 MB or more of free memory |
| Memory (Macintosh) | 256 MB or more |
| Hard Disk Space (Windows) | 30 MB or more of free space |
| Hard Disk Space (Macintosh) | 30 MB or more of free space |
| Processor (Macintosh) | Macintosh G4 or better |
Source: Yamaha Studio Manager V2 Installation Guide for DM2000/02R96/DM1000/01V96
All Yamaha 01V96 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
How to use the product for one specific task, with worked examples.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What operating systems are supported for Studio Manager V2 on Windows?
Supported operating systems include Windows 95, 98, 98SE, Me, NT4.0, 2000, XP Home Edition, and XP Professional.
From: Yamaha Studio Manager V2 Installation Guide for DM2000/02R96/DM1000/01V96
What operating systems are supported for Studio Manager V2 on Macintosh?
Supported operating systems include Mac OS X 10.2 or later. Mac OS 9 or earlier is supported for specific drivers like OMS.
From: Yamaha Studio Manager V2 Installation Guide for DM2000/02R96/DM1000/01V96
What happens if the backup battery is completely depleted?
If the backup battery is completely depleted, internal data will be lost.
What is this product and what type of device is it?
This document covers the Yamaha 01V96 Digital Mixing Console.
How should you handle the power cord if it gets damaged or pinched?
You must refer all servicing to qualified service personnel.
What file extensions are used for saved sessions?
Sessions saved in an Editor use 'YSE' or '01X' formats, while those saved in the Studio Manager window use 'YSM'.
