Key facts
- Brand
- Yamaha
- Model
- Q2031
- Industry
- Appliances
- Documents
- 4
- Languages
- EN · JA
- Last added
- 2012-06-11
Start here

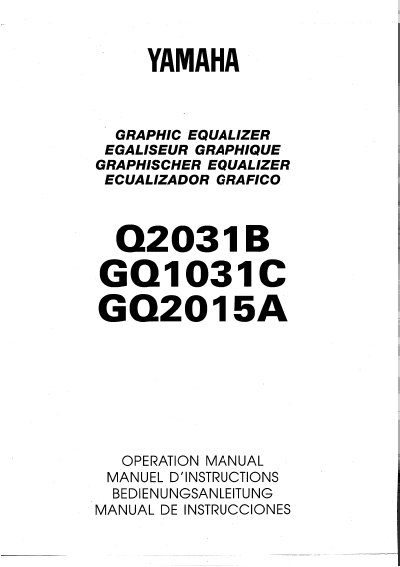

Yamaha Q2031B/GQ1031C/GQ2015A Graphic Equalizer Operation Manual
This document is the operation manual for the Yamaha Q2031B, GQ1031C, and GQ2015A graphic equalizers. It provides instructions on safety precautions, front and rear panel functions, and typical system configurations. The guide details how to use controls such as the RANGE switch, HPF (High Pass Filter), EQ bypass, and level adjustments for precise audio equalization.
Read onlineYamaha Q2031 specifications
| Bandwidth (Q2031B/GQ1031C) | 20 Hz to 20 kHz, 31-band control |
|---|---|
| Bandwidth (GQ2015A) | 25 Hz to 16 kHz, 15-band control |
| Input Level | +4 dB |
| Input Connectors | Balanced XLR-type and 1/4" phone jack |
Source: Yamaha Q2031B/GQ1031C/GQ2015A Graphic Equalizer Operation Manual
All Yamaha Q2031 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the function of the RANGE switch?
It selects the boost or cut range for equalization; off selects +/-12 dB, and on selects +/-6 dB.
From: Yamaha Q2031B/GQ1031C/GQ2015A Graphic Equalizer Operation Manual
How do I bypass the equalizer section?
Turn the EQ switch to the off position.
From: Yamaha Q2031B/GQ1031C/GQ2015A Graphic Equalizer Operation Manual
What is the frequency range of the Q2031A?
The equalizer covers a range from 20 Hz to 20 kHz.
From: Yamaha Q2031A Stereo 31-Band Graphic Equalizer Operating Manual
How much boost or cut can the Q2031A provide?
It offers up to 12 dB of boost or cut at any of the 31 bands.
From: Yamaha Q2031A Stereo 31-Band Graphic Equalizer Operating Manual
What is the frequency range of the Q2031?
The equalizer covers a range from 20 Hz to 20 kHz.
From: Yamaha Q2031 Stereo Graphic Equalizer Operating Manual
How much boost or cut can be applied per band?
Up to ±12 dB of boost or cut is available at any of the 31 bands.
From: Yamaha Q2031 Stereo Graphic Equalizer Operating Manual
