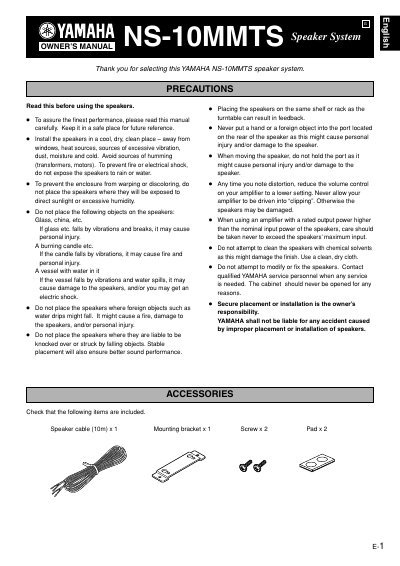

Yamaha NS-10MMTS Speaker System User Manual
The Yamaha NS-10MMTS is a compact 2-way bass reflex speaker system featuring a magnetic shielding design. The document outlines precautions regarding placement to avoid damage from heat, moisture, or vibration, and warns against placing objects on the speakers that could fall due to vibrations.
Installation instructions cover wall mounting using the provided bracket with specific screw requirements (3.5-4 mm tapping screws) and warnings about surface stability. Connection details explain how to wire the speaker terminals to an amplifier, including polarity checks for optimal bass performance and methods for connecting banana plugs.
Yamaha NS-10MM specifications
| Product Type | 2-way bass reflex speaker system |
|---|---|
| Woofer Size | 9 cm (3-1/2") cone woofer |
| Tweeter Size | 2.5 cm (1"} balanced dome tweeter |
| Dimensions (WxHxD) | 107 x 191 x 141 mm (4-3/16" x 7-1/2" x 5-9/16") |
All Yamaha NS-10MM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What screws are required for wall mounting?
A tapping screw with a diameter of 3.5-4 mm is available at the hardware store.
Can I use speaker stands instead of the mounting bracket?
Yes, you can use the screw holes on the bottom of the speaker for commercially available speaker stands.
What are the safety precautions for placing the speaker?
Place the speaker in a cool, dry, clean place away from windows, heat sources, and moisture. Do not expose it to rain or water.
How should I connect the speaker cables?
Connect the red side of the cable to the (+) terminals and the black side to the (-) terminals on both the amplifier and speakers.
Can I use the NS-10MM speakers inside a car?
No, this speaker system is designed for home use only and should never be used inside a car.
How should I connect the speaker cables to the terminals?
Connect the side of the cable marked by a blue line to the (+) terminals and the unmarked side to the (-) terminals.
