Start here

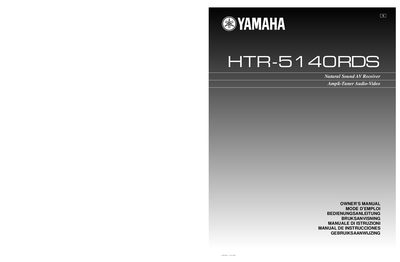

Yamaha HTR-5140RDS AV Receiver Owner's Manual
The Yamaha HTR-5140RDS is a 5-channel power amplifier featuring Dolby Digital decoding, Dolby Pro Logic Surround processing, and CINEMA DSP technology. It supports various digital sound fields to simulate environments like concert halls or jazz clubs.
The manual covers the unboxing of supplied accessories such as indoor FM antennas and remote controls, detailed connection procedures for speakers and external decoders, and instructions for using the sleep timer and universal remote control transmitter.
Yamaha HTR-5140 specifications
| Channel Configuration | 5-Channel Power Amplification |
|---|---|
| Minimum RMS Output Power (Main) | 60W+60W (8 ohm) |
| Minimum RMS Output Power (Center) | 60W (8 ohm) |
| Minimum RMS Output Power (Rear) | 60W+60W (8 ohm) |
All Yamaha HTR-5140 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I set the volume before playing audio?
Always set the VOLUME control to "0" before starting the audio source play.
What safety precautions should be taken regarding ventilation?
Ensure proper ventilation by allowing a space of at least 20 cm behind, 20 cm on both sides, and 30 cm above the top panel.
How do I reduce the risk of electric shock?
Do not open the cover or back, as no user-serviceable parts are inside; refer servicing to qualified personnel.
What should I do if the unit causes radio or TV interference?
Relocate either this product or the affected device, utilize power outlets on different circuits, or relocate/reorient the antenna.
