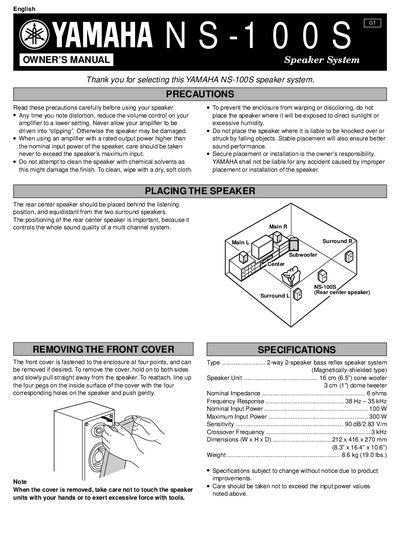

Yamaha NS-100S Speaker System Owner's Manual
User Manual 2 pages · 46 KB · EN
This document is the Owner's Manual for the Yamaha NS-100S speaker system. It includes safety precautions regarding amplifier clipping and placement, instructions for removing the front cover, and detailed connection procedures for both standard and bi-wiring setups.
Read onlineYamaha NS-100S specifications
| System Type | 2-way 2-speaker bass reflex speaker system |
|---|---|
| Shielding | Magnetically-shielded type |
| Woofer | 16 cm (6.5") cone |
| Tweeter | 3 cm (1") dome |
| Nominal Impedance | 6 ohms |
| Frequency Response | 38 Hz — 35 kHz |
| Dimensions | 212 x 416 x 270 mm (8.3" x 16.4" x 10.6") |
| Weight | 8.6 kg (19.0 lbs.) |
All Yamaha NS-100S documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the difference between standard and bi-wiring connections?
Bi-wiring uses two pairs of cables for the woofer and tweeter separately to decrease modulation distortion caused by cable resistance.
What happens if I connect the speaker with reversed polarity?
The sound will be unnatural and lack bass.
What precautions should be taken when using the amplifier with this speaker?
Reduce the volume if distortion is noted and never allow the amplifier to be driven into clipping to prevent speaker damage.
How should the speakers be placed for better stereo images?
The speakers should be slightly angled in towards the listeners.
