Start here

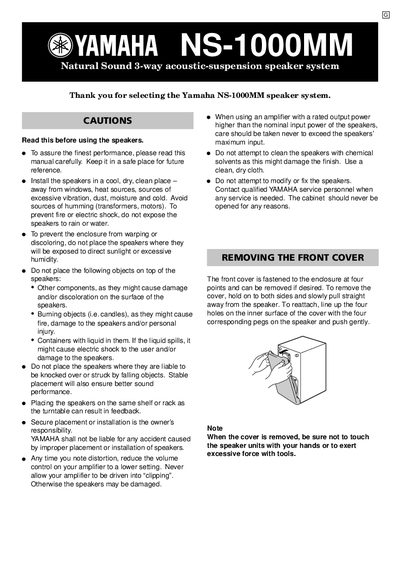

Yamaha NS-1000MM Speaker System User Manual
The Yamaha NS-1000MM is a magnetically shielded 3-way acoustic-suspension speaker system featuring a 12 cm cone woofer, 2.5 cm dome mid-range driver, and 1.5 cm dome tweeter. The manual details the removal of the front cover for access to internal components and provides specific instructions for wall mounting using provided brackets or alternative screw holes.
Read onlineYamaha NS-100 specifications
| System Type | 2-way 2-speaker bass reflex speaker system |
|---|---|
| Shielding | Magnetically-shielded type |
| Woofer | 16 cm (6.5") cone |
| Tweeter | 3 cm (1") dome |
| Nominal Impedance | 6 ohms |
| Frequency Response | 38 Hz — 35 kHz |
| Dimensions | 212 x 416 x 270 mm (8.3" x 16.4" x 10.6") |
| Weight | 8.6 kg (19.0 lbs.) |
All Yamaha NS-100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the difference between standard and bi-wiring connections?
Bi-wiring uses two pairs of cables for the woofer and tweeter separately to decrease modulation distortion caused by cable resistance.
What happens if I connect the speaker with reversed polarity?
The sound will be unnatural and lack bass.
Can I remove the front cover of the speakers?
Yes, the front cover is fastened at four points and can be removed by holding both sides and pulling straight away.
Will placing these speakers near a TV set affect the picture?
Yes, even though they are magnetically shielded, placing them too close to a TV might impair picture color.
What is the impedance of the NS-1000 speaker system?
The impedance of the NS-1000 is 8 ohms.
What type of amplifier output terminal should be used with the NS-1000?
The speakers should be connected only to an output terminal.
