This document describes how to achieve mirroring with Yamaha DM2000 digital mixers, including preparation work and configuration steps

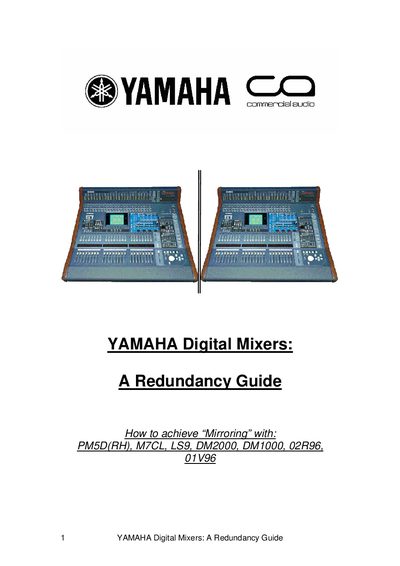

The Redundancy Guide describes a mirroring setup for mission‑critical live‑mix applications. By connecting two identical Yamaha digital mixers (PM5D(RH), M7CL, LS9, DM2000, DM1000, 02R96, 01V96) and sharing inputs, the backup console can instantly take over if the main console fails, ensuring uninterrupted audio mixing.
The document details the required hardware (identical consoles, matching MY‑cards, split analog/digital inputs, two MIDI cables, and a memory card or USB storage), the MIDI and HOST configuration steps, how to save and transfer ALL DATA files, and how to use Yamaha Studio Manager to synchronize scenes, libraries, and settings between the consoles. It also lists which functions are mirrored automatically and which must be set manually.
| MIDI cables required | 2 |
|---|---|
| Memory card or USB memory needed | Required for M7CL and LS9 |
| Studio Manager software | Required for data transfer |
Two MIDI cables are required to connect the consoles.
Save an ALL DATA file onto a memory card or use Studio Manager to sync the session between the consoles.
Yamaha Studio Manager software is required to synchronize scenes, libraries, and other data.
