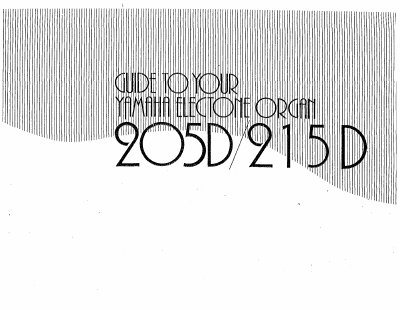

Yamaha 205D/215D Electone Owner's Manual
This manual provides instructions for the Yamaha 205D and 215D Electone electronic organs. It guides users through the unique features of the instrument, including keyboards, pedals, tone levers, and various effects like Auto Rhythm and Auto Arpeggio. The document emphasizes proper care and handling to ensure the best performance of the organ.
Read onlineYamaha 215D specifications
| Lower Keyboard | 44 keys (3-2/3 octaves) |
|---|---|
| Pedals | 13 keys (1 octave) |
| Output Power | 30 Watts (RMS) |
| Power Source | 50/60 Hz AC |
| Weight (205D) | 130 lb (57 kg) |
| Weight (215D) | 141 lb (64 kg) |
All Yamaha 215D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I adjust the angle of the footboard?
Loosen the Footboard Angle Adjustment Bolt with the supplied key wrench, adjust the angle, and then tighten the bolt to secure it.
How do I adjust the spring tension on the pedal?
Loosen the spring tension locking bolt, rotate the locking nut and spring tension adjustment nut to adjust the tension, and then tighten the locking bolt and nut.
What should I do if the finish on my Electone Organ is damaged?
Clean the cabinet with a damp cloth containing a neutral cleaning agent and use only soft and dry cloth on the keyboards.
Can I use paint thinner or alcohol on the organ?
No, you should never use paint thinner, alcohol or other chemicals on either the keys or the cabinet.
When does the LIMIT indicator light?
It lights when the amplifier output exceeds its maximum voltage, when excessive power is drawn, or when attenuation reaches 3 dB or more.
