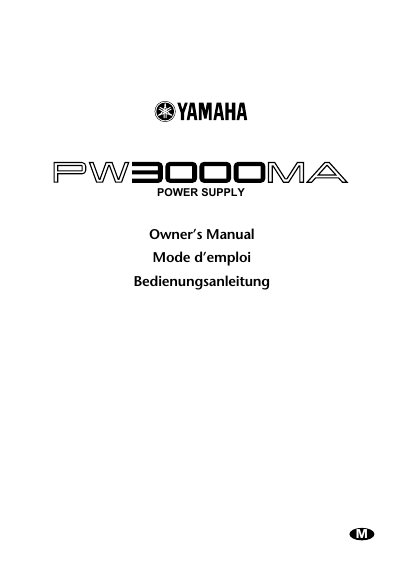

Yamaha PW3000MA Power Supply Owner's Manual
The Yamaha PW3000MA is a power supply unit designed to provide power to specific Yamaha mixer models. It features a front panel with a power switch, operation monitor LEDs, grounding terminals, and connectors for DC output and parallel input. The unit can be connected in parallel to ensure uninterrupted power supply.
Read onlineYamaha PW3000M specifications
| Operating Temperature | 5°C and 35°C (41°F and 95°F) |
|---|---|
| Power Requirements (USA/Canada) | 120 V, 60 Hz |
| Power Requirements (Europe) | 230 V, 50 Hz |
| Power Consumption (USA/Canada) | 500 W, 600 VA |
| Dimensions | 480 mm x 103.5 mm x 455 mm |
| Weight | 15 kg |
All Yamaha PW3000M documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What mixers is the PW3000MA compatible with?
It is compatible with M2500 and M3000A series mixers including models with 56, 48, 40, 32, and 24 channels.
How does the parallel connection feature work?
Two units can be connected in parallel so each supplies 50% of the power, ensuring 100% power if one unit fails.
What happens if the OPERATION MONITOR LED becomes dim?
If an LED indicator for a specific power section becomes dim, it indicates a fault. You should turn off the power supply and wait before turning it back on.
Can multiple PW3000MA units be connected together?
Yes, the DC Parallel Input connector allows two PW3000MA units to operate in parallel. In this mode, they output 50% power each.
What should I do if the power supply unit is found to be the source of interference?
Try relocating either this product or the device that is being affected by the interference.
How should I disconnect the power cord?
Hold the plug when disconnecting from an AC outlet; never pull the cord.
