This document is a manual, mainly introduces the safety use precautions

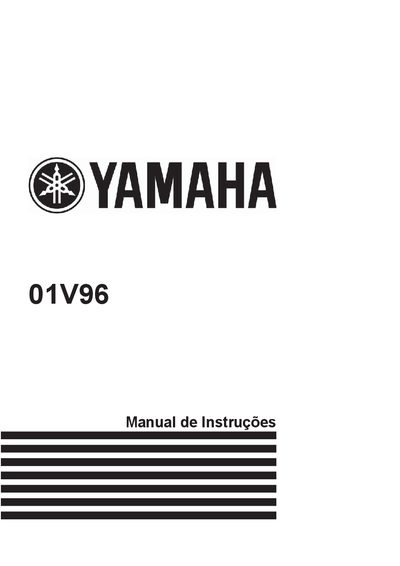

This manual contains important safety information for the Yamaha 01V96 digital mixer, including warnings about electric shock, fire risk, and proper handling. It explains how to connect the power cable, avoid moisture, and use only the supplied accessories.
The document also covers installation, basic operation, connector pinouts, and troubleshooting tips such as low‑battery warnings and interference from nearby devices. Authorized service contact information is provided for repairs or battery replacement. This manual is written in Portuguese.
| Power connection | Connect to AC outlet with voltage indicated in manual |
|---|---|
| XLR connector pinout | Pin 1: ground, Pin 2: Hot (+), Pin 3: Cold (-) |
| Earth point | Dedicated earth point to prevent electric shock |
Connect the power cable only to an AC outlet with the voltage specified in the manual and keep it away from moisture.
Contact an authorized Yamaha service center to have the internal battery replaced.
No. Do not remove the cover; if internal inspection or repair is needed, contact an authorized Yamaha service technician.
