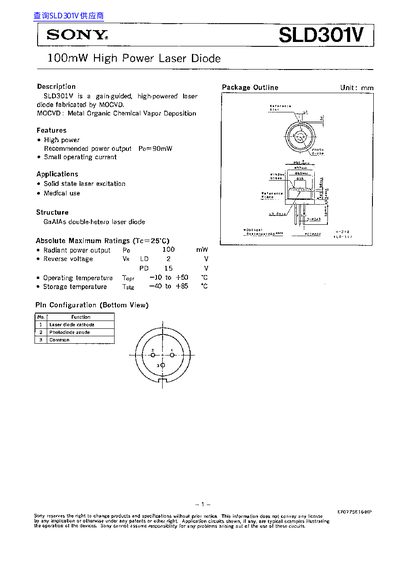

The SLD301V is a gain‑guided, high‑power laser diode fabricated by MOCVD with a GaAlAs double‑hetero structure. It is intended for solid‑state laser excitation and medical use. The device delivers up to 100 mW radiant power and operates over a temperature range of –10 °C to +50 °C.
Key specifications include a threshold current of about 200 mA, typical operating current of 250 mA (up to 400 mA), operating voltage around 1.9 V, and a wavelength range of 770‑840 nm. Safety precautions emphasize the use of infrared‑blocking goggles and avoiding direct eye exposure to the beam.
| Threshold current (Ith) | 200 mA (typ) |
|---|---|
| Operating voltage (Vop) | 1.9 V (typ, up to 3.0 V) |
| Radiant power output (Po) | 90 mW (typ, up to 100 mW) |
| Slope efficiency | 0.65 mW/mA (typ, up to 0.9 mW/mA) |
