Start here

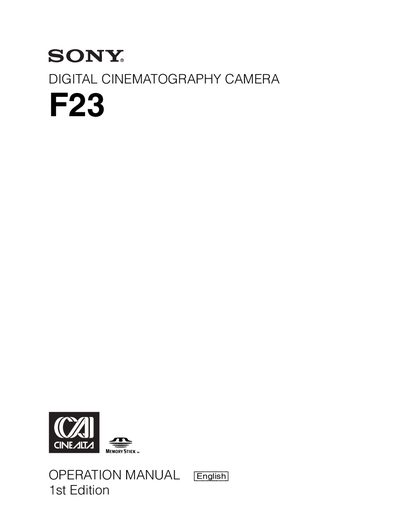

Sony F23 Digital Cinematography Camera Operation Manual
The Sony F23 is a 2/3‑inch type CCD digital cinematography camera offering 1920 × 1080 pixel resolution, 14‑bit A/D conversion and a wide dynamic range for high‑quality video production. It features a compact body, rugged lens mount, dual power outputs (12 V DC and 24 V DC) and compatibility with film‑camera accessories.
The operation manual covers system overview, installation, basic adjustments, detailed menu configuration, and storage of user settings via Memory Stick. It also lists supported video formats, frame‑rate options, and provides guidance on power supply, accessory connections, and troubleshooting.
SONY F23 specifications
| Effective pixel count | 1920 × 1080 |
|---|---|
| A/D converter resolution | 14‑bit |
| Memory storage | Memory Stick |
Source: Sony F23 Digital Cinematography Camera Operation Manual
All SONY F23 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I save custom menu settings?
Custom menu settings can be saved to a Memory Stick and later retrieved when needed.
From: Sony F23 Digital Cinematography Camera Operation Manual
What is the sensor resolution of the F23?
The camera uses 2/3‑inch CCDs with an effective pixel count of 1920 × 1080.
From: Sony F23 Digital Cinematography Camera Operation Manual
