Key facts
- Brand
- Samsung
- Model
- M393B5773CH0
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-01
Start here

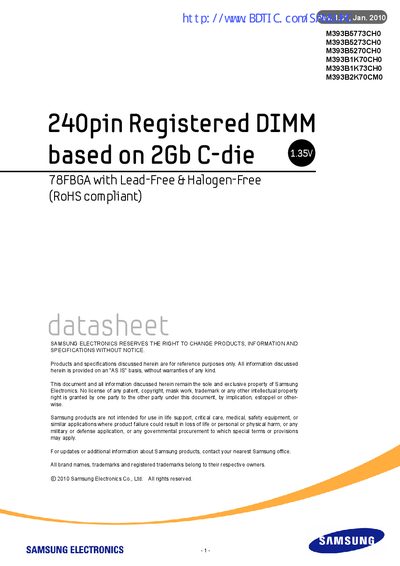

Samsung M393B5773CH0 DDR3L Registered DIMM Handbook
Datasheet 53 pages · 1.5 MB · EN
This handbook provides detailed technical information for the Samsung M393B5773CH0 DDR3L Registered DIMM. It includes ordering data, key features, electrical characteristics, pin configurations, thermal sensor details, and mechanical dimensions.
The document is organized into sections such as Ordering Information, Key Features, Address Configuration, Pin Descriptions, Thermal Sensor specifications, and AC/DC operating conditions, allowing designers and system integrators to quickly locate the data they need.
Samsung M393B5773CH0 specifications
| Form factor | 240‑pin Registered DIMM |
|---|---|
| Die technology | 2 Gb C‑die |
| Package | 78 FBGA, lead‑free & halogen‑free (RoHS compliant) |
| Supported speeds | DDR3‑800, DDR3‑1066, DDR3‑1333 |
| Clock period (tCK min) | 2.5 ns (800 MT/s), 1.875 ns (1066 MT/s), 1.5 ns (1333 MT/s) |
| Operating voltage | 1.35 V (1.28‑1.45 V) & 1.5 V (1.425‑1.575 V) |
All Samsung M393B5773CH0 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the part number for the 2 GB module?
The 2 GB module part number is M393B5773CH0‑YF8/H9.
Which DDR3 speeds are supported by this DIMM?
It supports DDR3‑800, DDR3‑1066, and DDR3‑1333 speeds.
