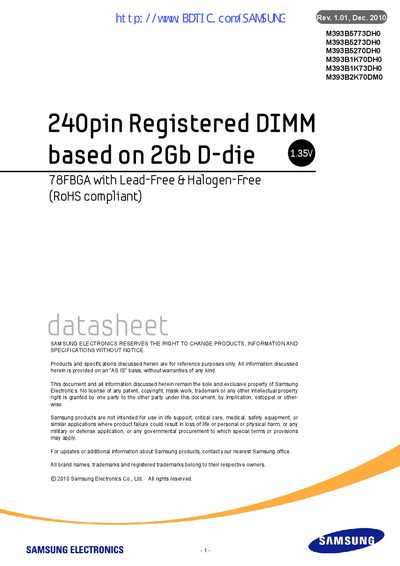

Samsung M393B5773DH0 DDR3L Registered DIMM Datasheet
The Samsung M393B5773DH0 datasheet provides detailed specifications for the 240‑pin DDR3L Registered DIMM family. It covers ordering information, key features, pin configurations, electrical characteristics, thermal sensor details, and mechanical dimensions for capacities ranging from 2 GB to 16 GB.
The document includes voltage ranges, speed grades, timing parameters, and a heat‑spreader design guide, making it a comprehensive reference for system designers and integrators working with Samsung DDR3L memory modules.
Samsung M393B5773DH0 specifications
| Form factor | 240‑pin Registered DIMM |
|---|---|
| Die technology | 2 Gb D‑die |
| Memory type | DDR3L SDRAM |
| Supported voltages | 1.35 V (1.28‑1.45 V) & 1.5 V (1.425‑1.575 V) |
| Speed grades | DDR3‑800, DDR3‑1066, DDR3‑1333, DDR3‑1600 |
| CAS latency (programmable) | 6‑11 |
Source: Samsung M393B5773DH0 DDR3L Registered DIMM Datasheet
All Samsung M393B5773DH0 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many pins does the Samsung M393B5773DH0 DIMM have?
It uses a 240‑pin Registered DIMM form factor.
What voltage ranges are supported by the DDR3L modules?
The modules support 1.35 V (1.28‑1.45 V) and 1.5 V (1.425‑1.575 V).
What voltage levels does the module support?
The module operates at 1.35 V (range 1.28‑1.45 V) or 1.5 V (range 1.425‑1.575 V).
Does the DIMM include a thermal sensor?
Yes, all Samsung RDIMM support a thermal sensor on the module.
