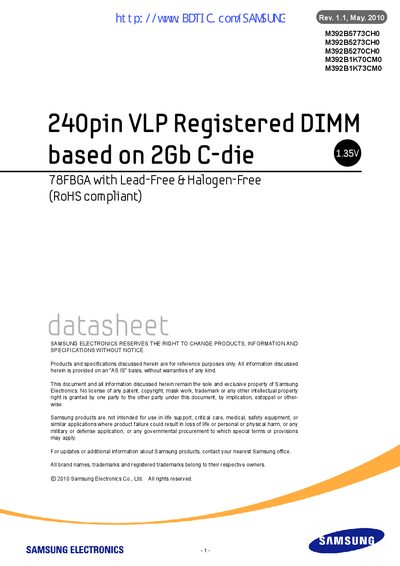

Samsung M392B1K70CM0 DDR3L VLP Registered DIMM Datasheet
This datasheet describes the Samsung M392B1K70CM0 8 GB DDR3L VLP Registered DIMM, including ordering information, key features, memory organization, and electrical characteristics. It covers pin configurations for both front and back sides, detailed pin descriptions, and functional I/O behavior.
The document also includes thermal sensor specifications, heat spreader design guidelines, and mechanical dimensions such as module height. Revision history and compliance statements are provided at the beginning of the file.
Samsung M392B1K70CM0 specifications
| Capacity | 8 GB |
|---|---|
| Operating Voltage | 1.35 V (1.28 V‑1.45 V) and 1.5 V (1.425 V‑1.575 V) |
| CAS Latency Options | 6, 7, 8, 9 |
| Thermal Sensor Resolution | 0.25 °C LSB |
Source: Samsung M392B1K70CM0 DDR3L VLP Registered DIMM Datasheet
All Samsung M392B1K70CM0 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the DIMM?
The DIMM operates at 1.35 V (typical 1.28 V‑1.45 V) or 1.5 V (typical 1.425 V‑1.575 V).
From: Samsung M392B1K70CM0 DDR3L VLP Registered DIMM Datasheet
Does the module support a thermal sensor?
Yes, all Samsung RDIMM modules support a thermal sensor on the DIMM.
From: Samsung M392B1K70CM0 DDR3L VLP Registered DIMM Datasheet
What is the pin configuration of the M392B1K70CM0 module?
It uses a 240‑pin VLP Registered DIMM layout.
From: Samsung M392B1K70CM0 DDR3 VLP Registered DIMM Datasheet
What DDR3 data rates are supported by this module?
The module supports DDR3‑800, DDR3‑1066, DDR3‑1333 and DDR3‑1600.
From: Samsung M392B1K70CM0 DDR3 VLP Registered DIMM Datasheet
