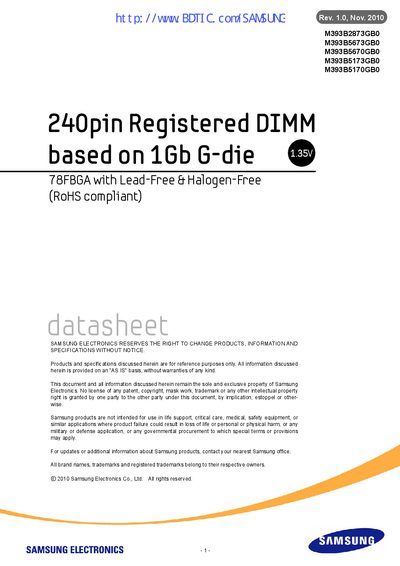

Samsung M393B2873GB0 Handbook
This handbook describes Samsung's 240‑pin DDR3L Registered DIMM modules based on 1 Gb G‑die FBGA devices. It includes ordering part numbers, key features, address configuration, pin layouts (front and back), and detailed pin descriptions.
The document also covers electrical characteristics such as voltage ranges, supported data rates, CAS latency options, thermal‑sensor integration, and mechanical dimensions for various module capacities (1 GB to 8 GB).
Samsung M393B2873GB0 specifications
| Form factor | 240‑pin Registered DIMM |
|---|---|
| Die type | 1 Gb G‑die FBGA |
| RoHS compliance | Lead‑Free & Halogen‑Free |
| Supported voltage | 1.35 V (1.28‑1.45 V) & 1.5 V (1.425‑1.575 V) |
| Data rates | 800 MHz (DDR3‑800) to 1600 MHz (DDR3‑1600) |
| CAS latency options | 6‑11 |
| Thermal sensor | Integrated on DIMM (optional) |
