Start here

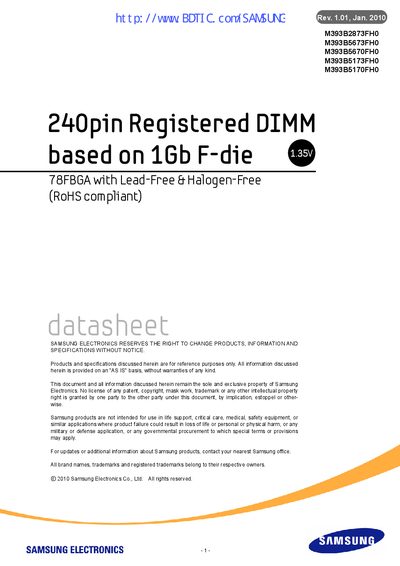

samsung M393B2873FH0 handbook
This handbook provides detailed information on Samsung's M393B2873FHO DDR3L Registered DIMM, including ordering data, key features, pin configurations, and electrical characteristics. It also contains thermal sensor specifications and physical dimensions for the module.
The document includes tables of part numbers, capacity options, voltage ranges, timing parameters, and mechanical drawings, serving as a reference for designers and system integrators working with Samsung DDR3L memory modules.
Samsung M393B2873FH0 specifications
| Form factor | 240‑pin Registered DIMM |
|---|---|
| Die technology | Based on 1 Gb F‑die |
| Capacity (M393B2873FHO) | 1 GB (128 M × 72) |
| Operating voltage | 1.35 V (1.28‑1.45 V) & 1.5 V (1.425‑1.575 V) |
| Physical dimensions (M393B5170FHO) | 133.35 mm × 40.15 mm |
| Independent internal banks | 8 |
| Operating temperature range | -20 °C to 125 °C |
Source: samsung M393B2873FH0 handbook
All Samsung M393B2873FH0 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the voltage range for the DDR3L modules?
The modules operate at 1.35 V (1.28 V – 1.45 V) or 1.5 V (1.425 V – 1.575 V).
What are the physical dimensions of the M393B5170FHO module?
The M393B5170FHO module measures 133.35 mm by 40.15 mm.
What DDR3 speed grades does the M393B2873FHO module support?
It supports DDR3‑800, DDR3‑1066, DDR3‑1333 and DDR3‑1600.
Does the module include a thermal sensor?
Yes, all Samsung RDIMM modules include a thermal sensor on the DIMM.
