Start here

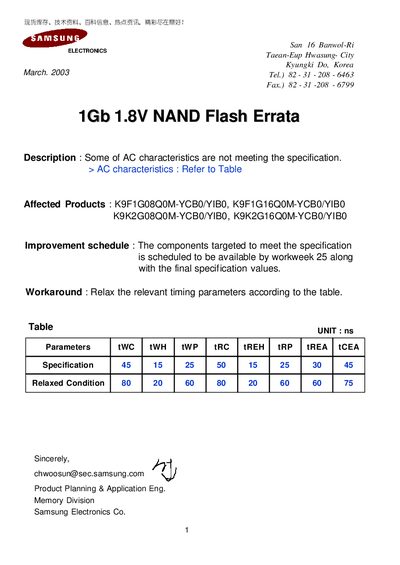

Samsung K9F1G08Q0M 1Gb 1.8V NAND Flash Errata Manual
The document reports an errata for Samsung's 1Gb 1.8 V NAND flash devices, identifying AC characteristic specifications that do not meet the original values. Affected products include part numbers such as K9F1G08Q0M‑YCB0/YIBO and K9F1G16Q0M‑YCB0/YIBO, with an improvement schedule targeting work‑week 25.
It provides revised timing tables, pin descriptions, package dimensions, and protection guidelines. The errata also details the Ready/Busy pin behavior, power‑up sequence, and recommended recovery time before issuing commands after power transitions.
Samsung K9F1G08Q0M specifications
| Voltage Supply (1.8 V device) | 1.70 V ~ 1.95 V |
|---|---|
| Endurance | 100 K program/erase cycles |
| Data Retention | 10 years |
| Program Time (typical) | 300 µs |
| Block Erase Time (typical) | 2 ms |
| Page Size | (2 K + 64) Bytes |
Source: Samsung K9F1G08Q0M 1Gb 1.8V NAND Flash Errata Manual
All Samsung K9F1G08Q0M documents by type
Disassembly, diagnostics and part numbers, for repair.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What recovery time is required before issuing commands after power‑up?
A minimum recovery time of 10 µs is required before the internal circuit is ready for any command sequences.
What is the allowed voltage range for the 1.8 V NAND flash device?
The device operates between 1.70 V and 1.95 V.
What is the minimum recovery time required before command sequences after power‑up?
A recovery time of at least 10 µs is required before the internal circuit is ready for any command sequences.
From: Samsung K9F1G08Q0M / K9F1G16Q0M / K9F1G08D0M / K9F1G16D0M / K9F1G08U0M / K9F1G16U0M Datasheet
What are the typical program and block erase times?
Typical program time is 300 µs and typical block erase time is 2 ms.
From: Samsung K9F1G08Q0M / K9F1G16Q0M / K9F1G08D0M / K9F1G16D0M / K9F1G08U0M / K9F1G16U0M Datasheet
