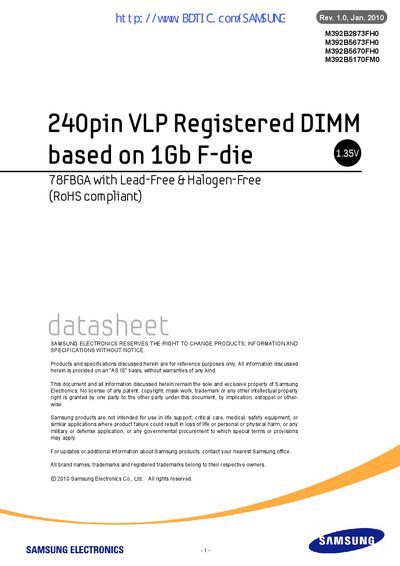

samsung M392B2873FH0 handbook (1)(1)
Datasheet 42 pages · 1.2 MB · EN
This document provides detailed technical information for Samsung's M392B2873FHO DDR3L VLP Registered DIMM module. It includes ordering information, key features, electrical characteristics, pin configurations, and thermal sensor specifications.
The datasheet also contains mechanical drawings for heat spreader design, module dimensions, and a comprehensive pin description table, useful for system designers and hardware engineers.
Samsung M392B2873FH0 specifications
| Supported Speeds | DDR3‑800, DDR3‑1066, DDR3‑1333 |
|---|---|
| Operating Voltage | 1.35 V (1.28‑1.45 V) & 1.5 V (1.425‑1.575 V) |
| Pin Count | 240 pins |
| Maximum Heat Spreader Thickness | 7.55 mm |
All Samsung M392B2873FH0 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What data rates does this DIMM support?
It supports DDR3‑800, DDR3‑1066, and DDR3‑1333 speeds.
What are the operating voltage ranges for this module?
The module operates at 1.35 V (1.28‑1.45 V) or 1.5 V (1.425‑1.575 V).
What speed grades does the M392B2873FHO DIMM support?
It supports DDR3‑800, DDR3‑1066 and DDR3‑1333 data rates.
