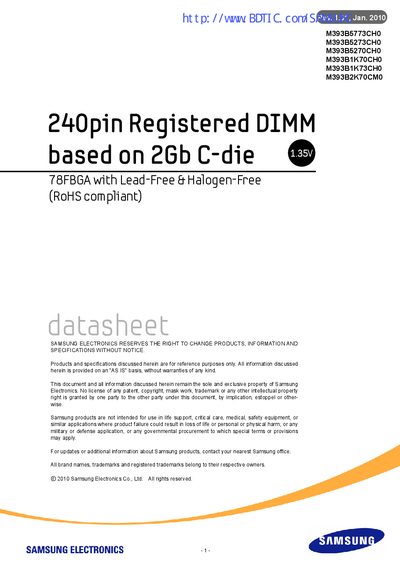

This document describes a 240-pin registered DIMM memory module from Samsung Electronics based on 2Gb C-die 78FBGA. The memory module is RoHS compliant, lead-free, and halogen-free.
This datasheet covers the Samsung M393B5773CHO DDR3L Registered DIMM, a 240‑pin memory module based on a 2 Gb C‑die. It includes ordering information, key features, address configuration, and detailed pin‑out diagrams for both front and back sides.
The document also provides electrical characteristics such as supported speeds (DDR3‑800/1066/1333), voltage options (1.35 V and 1.5 V), thermal sensor specifications, and absolute maximum ratings, along with physical dimensions and heat‑spreader design guidance.
