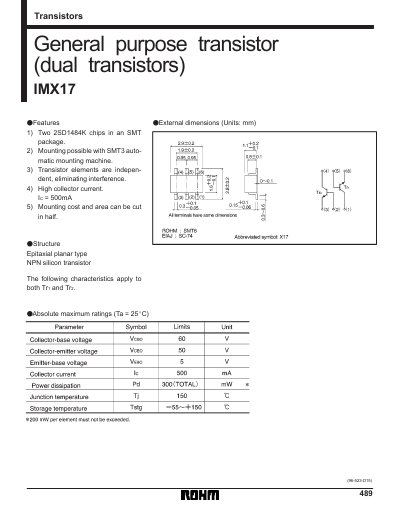

This document describes the external dimensions, features, and characteristics of a dual transistor product IMX17. The product features two 2SD1484K chips that can be mounted using an SMT3 automatic mounting machine. The transistor elements are independent, eliminating interference. It has a high collector current. IC = 500mA. It can reduce mounting costs and area.
The ROHM IMX17 datasheet provides detailed information on this dual NPN silicon transistor, including its features, structure, absolute maximum ratings, and electrical characteristics. It also lists packaging specifications and characteristic curves for design reference.
An appendix warns that the device is intended for ordinary electronic equipment and advises consulting ROHM sales representatives before using it in safety‑critical applications such as medical or aerospace equipment. This manual is written in Chinese.
| Collector current (IC) | 500 mA |
|---|---|
| External dimensions | 489 mm |
The maximum collector current is 500 mA.
It is not recommended; users should consult ROHM sales representatives before using it in such applications.
